Carpet Pilling and Fuzzing Tester
Instrument Description
This instrument is used to simulate the pilling and fuzzing phenomena that occur during the normal use of carpets. The instrument contains a roller covered with nylon, which can generate a frictional motion with a set number of cycles on the surface fibers of the sample. Then, observe the appearance changes of the sample.
Relevant Standards
GB/T21196 - 2007. GB/T4802.2. GB/T13775. FZ/T20020. ASTM D4970. ISO12945 - 2. ASTM D4966. ASTM D3886. ISO12947. JIS L1096. IWS TM196. TM112. M&S
Application Scope
It is used for performance tests of abrasion resistance, wear - and - tear, and appearance changes (pilling) of textiles and membrane materials.
Working Principle
The circular textile sample rubs against the standard abrasive along the motion trajectory of the Lissajous curve under a certain pressure, resulting in sample damage. The abrasion - resistant performance of the textile is represented by the number of abrasion cycles until the sample is damaged.
Parameters
Rollerdimensions:Ø63mm×60mmwide
Rollermass:2.0±0.1lb(0.91±0.05kg)
Reciprocatingstroke:150±5mm
Reciprocatingfrequency:60±2cyclesmin⁻¹
Testcycles:selectable1–9,999(commonly1,000cycles)
Samplesize:min.180mm×180mm
Maximumsamplethickness:25mm
Workingarea(testbed):220mm×220mm
Send product request
Other supplier products
 |
Liquid Spontaneous ignition point tester | Product Description complies with GB/T 21860-2008 “Test Method for Autoignition Temperature of Liquid Chemicals” and ASTM E “Tes... |
 |
Contact lens oxygen permeability measuring machine | Product Introduction: Contact lens oxygen permeability measuring instrument （polarography） is designed for soft and hard contact lenses （contact l... |
 |
Collection of needle rubber sleeve resilience tester | Product introduction The collection needle rubber sleeve resilience tester evaluates the force measured by the collection tube when it passes... |
 |

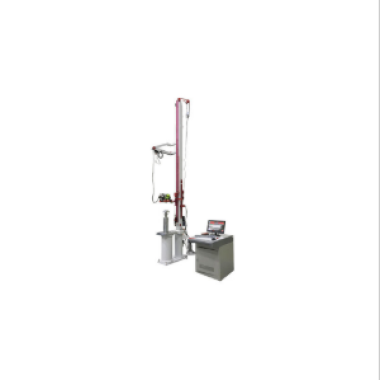

Safety Helmets Acceleration Impact & Penetration Tester | Standard GB/T 2812: Safety Helmets (China National Standard) Equivalent Compliance: ISO 6220-1 (Industrial Safety Helmets – Impact Absorpti... |
 |
