Respirator Fit Tester
PortaCount Respirator Fit Tester:
Qinsun assesses the overall integrity of masks by performing an aerosol leak test utilizing the PortaCount Respirator Fit Tester as a particle detector. While under conditions of negative pressure and constant flow.
The mask is tested on a full headform with an enhanced bladder seal system to provide a tight seal for most CBRN gas mask and commercial respirator types and sizes. Testing masks on Qinsun’s full headform configuration allows for use of the mask’s head harness, mimicking a real-life application and providing more accurate test results.
The PortaCount Pro+ Fit Tester eliminates the guesswork associated with tedious and error-prone qualitative fit test methods. Rather than depending on a person’s chemical sensitivity or cooperation during a qualitative fit test, the PortaCount Pro+ Fit Tester measures actual fit.
Standard：
ISO 16975:3-2017
Features&Benefits:
Separate tests for overall mask integrity (Protection Factor), exhalation valve and drink tube
Integrated aerosol wand pinpoints leak locations, allowing for immediate evaluation and repair
Full headform configuration allows for use of the mask’s head harness, mimicking real-life application and providing more accurate test results.
Single head form with an enhanced bladder seal system creates a tight seal for most gas mask and full face respirator types and sizes.
Easy-to-read display with an intuitive step-by-step test sequence allows for minimal operator training
IncludedItems:
HEPA Filter Canister (x2)
Drink Tube Sampling Hose
DT & EV Bypass Hose
Emery Oil (500 ml)
PortaCount Fit Tester Interface Cable (for Models 8030/8038 only)
MITA Computer Cable
USB to Serial Converter
MITA Communicator Software CD
Quick Start Guide
Self Check Components Reference Card
Send product request
Other supplier products
 |
Vertical/Horizontal Wire Flame Test Apparatus | This testapparatus(VW-1)is designed according to UL1581 sect 1080.1~1080.14. and meet the criteria of VW-1(Vertical-specimen)FlameTest.It can be us... |
 |

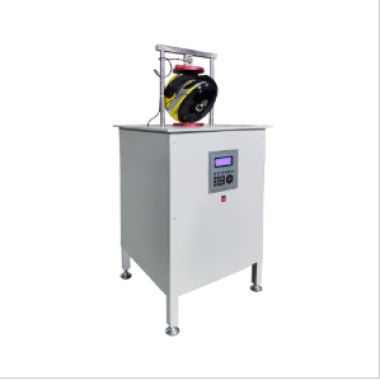

Safety Helmet Lateral Rigidity Tester | Standard GB 2812: Safety Helmets (China National Standard) Equivalent Compliance: ISO 6220-2 (Industrial Safety Helmets – Lateral Deformati... |
 |

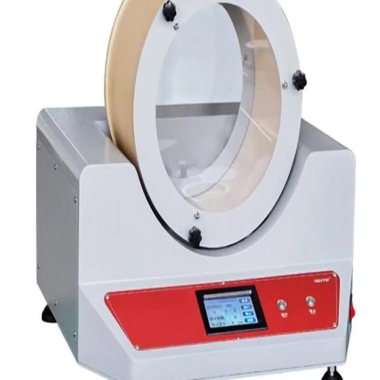

Carpet Dimensional Stability Tester | Standard ASTM D5417(Standard Test Method for Assessing Carpet Dimensional Stability) ISO 2551(Textile Floor Coverings - Determination of Dimens... |
 |

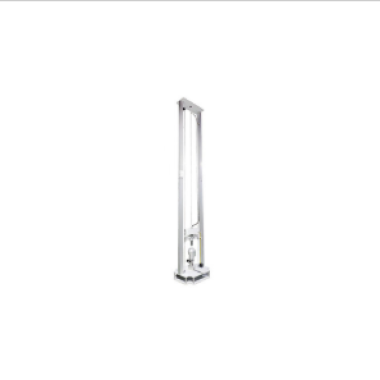

Goggles Puncture Resistance Testing Machine | Applicable standards: GB 811-2010 ECE R22.05 EN1077 Purpose It is to make a certain weight of sharp objects fall from the height specified in ... |
 |
