Battery Powder resistivity meter
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards
YS/T 587.6-2006
GB/T 24525-2009
GBT 30835-2014
Product Advantages
Unmatched Measurement Flexibility
Dual-probe compatibility: Switch seamlessly betweenfour-point probe(for low-resistance materials) andtwo-point probe(for high-resistance applications) to adapt to diverse powder types.
Ultra-wide ranges: Handle pressures up to350 MPaand resistances up to1200 MΩ, covering R&D needs for conductive to insulating materials.
Intelligent Automation
Fully automated software with customizable parameters (pressure, duration, sampling rate) enablesone-click testing, reducing human error and accelerating workflows.
Comprehensive Data Insights
Real-time monitoring and export of9 critical parameters: Pressure, stress, temperature, humidity, thickness, resistance, resistivity, conductivity, and tapped density. Generate dynamic curves and auto-save reports for traceability.
Versatile Testing Modes
Three operational modes:Pressure step,single-point unloading, andsteady-state unloadingto simulate real-world compaction scenarios.
Certified Calibration
Pre-installedNIST-traceable calibration blocks(thickness and resistance) ensure measurement credibility and simplify third-party audits.
Product Features
High-Precision Control: Advanced pressure regulation (±0.5% FS accuracy) and laser-based thickness sensing (±1 μm resolution).
Material Compatibility: Optimized for lithium/sodium-ion battery cathodes/anodes (LCO, NCM, LFP, graphite), conductive additives, solid-state electrolytes, and micron-scale powders.
Environmental Integration: Built-in sensors for temperature (-20°C to 150°C) and humidity (10%–95% RH) compensation.
Data Management: Export test results in CSV/PDF formats or integrate via API with LabVIEW, MATLAB, or Python for advanced analytics.
Ergonomic Design: Compact footprint with touchscreen interface and safety interlocks for hazardous material testing.
Accessories
Main Unit: Powder Resistivity Meter with integrated safety enclosure.
Software Suite: Multi-language GUI with data analysis tools.
Probes: Two interchangeable probe sets (four-point and two-point).
Calibration Kits:
Thickness calibration block (certified by accredited lab).
Resistance standard (10 Ω, 1 kΩ, 100 kΩ).
Testing Jigs: Customizable powder cells for varying sample volumes.
User Manual: Multilingual PDF with maintenance guidelines.
Technical Parameters
| Parameter | Specification |
|---|---|
| Pressure Range | 0–350 MPa (adjustable increments) |
| Resistance Measurement | 1 μΩ–1200 MΩ (10 nΩ resolution) |
| Thickness Accuracy | ±1 μm (laser sensor) |
| Temperature Range | -20°C to 150°C (±0.5°C accuracy) |
| Humidity Range | 10%–95% RH (±3% accuracy) |
| Data Interface | USB 3.0. Ethernet, RS-232 |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Dimensions (W×D×H) | 450 × 550 × 600 mm |
Send product request
Other supplier products
 |
Spontaneous Combustion Tester for Solids | Whats/App: +86 156 1874 6768 Web: standard-groups.com Product Description Conforms to the UN Recommendations on the Transport of Dangerous Goods... |
 |

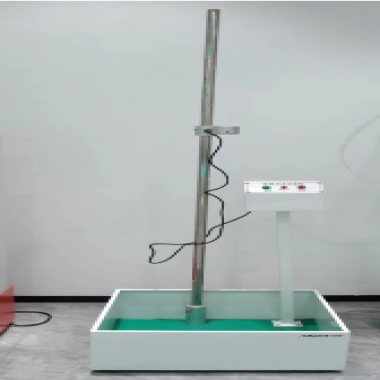

Falling ball impact testing machine | Product Introduction: Falling ball impact tester is suitable for testing the fastness of plastic, ceramic, acrylic, glass fiber and other material... |
 |
