Drawer slide durability meter
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Product Introduction
Drawer slides are fundamental components in furniture, cabinetry, and various storage solutions, providing smooth and reliable access to contents.Their durability is a key factor in the overall quality and lifespan of the final product. The Drawer Slide Durability Testing Machine is specifically engineered to simulate years of typical use in a controlled and accelerated manner.
The instrument is used in laboratories for:
Evaluating the long-term durability and lifespan of various types of drawer slides.
Assessing the operational smoothness and consistency of drawer slides over extended cycles.
Identifying potential failure points, wear, or deformation in drawer slides under repetitive use.
Quality control and assurance for drawer slide manufacturers and furniture producers.
Research and development of new drawer slide designs and materials with improved durability.
Ensuring compliance with national and international furniture hardware durability standards.
Simulating accelerated aging and heavy-duty use conditions for drawer slides.
Meet the standard
ANSI/BIFMA X5.5
EN 15338
ISO 7170
QB/T 2454-2013
BIFMA X5.5-2008
Product Advantages
Highly precise PLC control system combined with a stepper motor ensures accurate and repeatable test cycles.
Adjustable reciprocating push-pull speed (1-15 times/min) to simulate various usage intensities.
Programmable test counter with automatic shutdown (up to 999.999 cycles) for unattended operation.
Flexible test stroke (100-600mm) to accommodate different drawer extension requirements.
Wide and easily adjustable installation width (100-900mm) with linear bearing for versatile slide compatibility.
Multiple test stations (1-6 stations) for increased testing efficiency and throughput.
Allows control over the stop time of the slide, enabling more specific test protocols.
Technical parameters
1. Reciprocating push-pull speed frequency adjustable speed: (1-15 times/min)
2. Can set the number of tests, set the value of automatic shutdown: (1-999999)
3. Test push-pull stroke: adjustable, (100-600Mm)
4. Control mode :PLC control; You can control the stop time of the slide
5. Installation width of drawer slide rail: 100-900MM adjustable. Slide mounting plate adopts guide rod with diameter of 30Mm, linear bearing sliding adjustment width
6. Test station :1-6 station, the electric control box is directly placed on the side of the machine motor, easy to operate.
7. Stepper motor: PLC program control, high precision.
8. Power supply: 220V/60h
Send product request
Other supplier products
 |
Scratch tester STD-KK01 | Whats/App: +86 156 1874 6768 Web: standard-groups.com Product introduction: With the continuous expansion of the use of plastic molding products... |
 |

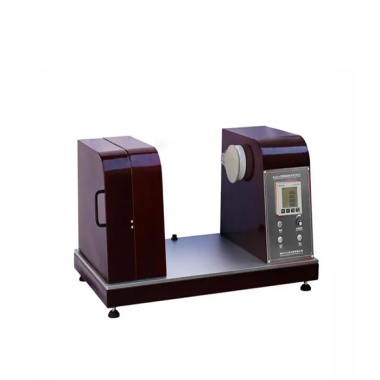

Textile far infrared radiation temperature rise tester manufacturer | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com The Textile Far Infrared Radiation Temperature Rise Tester is a high-precisio... |
 |
