Medical Injection Needle Stiffness Measuring Device
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standard
GB 18457-2001
This standard mandates precise control over needle wall thickness (normal, thin, ultra-thin) and rigidity performance, directly impacting patient comfort by minimizing pain during injections.
Product Advantages
- Precision Compliance: Engineered to meet global medical standards, ensuring reliable results for needle manufacturers.
- High Accuracy: Deflection measurement (±0.01mm) and load control (±0.1N) guarantee precise evaluation of needle rigidity.
- Versatility: Supports all needle specifications (0.3mm–3.4mm) and wall types (normal, thin, ultra-thin).
- User-Friendly Design: Simplified setup and automated testing process reduce operational complexity.
- Durability: Compact, robust construction (25kg) with lifetime free upgrades aligned with national standards.
Product Features
- Advanced Testing Principle: Measures needle deflection by applying a vertical force at the center of a defined span, simulating real-world stress conditions.
- Comprehensive Kit: Includes a main testing unit, calibration weights, specialized jigs, and a printer for instant data documentation.
- Adjustable Parameters: Customizable span distance (0–55mm) and loading speed (1mm/min ±0.1mm/min) to accommodate diverse needle types.
- Safety & Compliance: Ensures needles meet rigidity thresholds to prevent bending during use, enhancing patient safety.
- Ergonomic Design: Compact dimensions (460mm×340mm×400mm) optimize laboratory workspace efficiency.
Technical Parameters
| Parameter | Specification |
|---|---|
| Deflection Measurement | 0–5mm, Accuracy ±0.01mm |
| Load Capacity | 5.5–60N, Accuracy ±0.1N |
| Span Adjustment | 0–55mm, Accuracy ±0.5mm |
| Needle Compatibility | 0.3mm–3.4mm (Normal/Thin/Ultra-Thin Wall) |
| Loading Speed | 1mm/min ±0.1mm/min |
| Dimensions | 460mm × 340mm × 400mm |
| Weight | 25kg |
| Power Supply | AC 220V/50Hz or Customized |
| Warranty | 1 Year + Lifetime Standard Upgrades |
Send product request
Other supplier products
 |
SUGA GX25 Xenon Lamp Weathering Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Applications Traditional Automotive: Brakes, steering wheels, manual transmissions, interi... |
 |
FPC Flex Durability chamber | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standard ASTM F392 Product features 1. the stepper motor drive, high-precision positioni... |
 |
ASTM D3574 compliant sponge compression hardness tester | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com This machine is used to measure the indentation hardness of porous elastic ma... |
 |

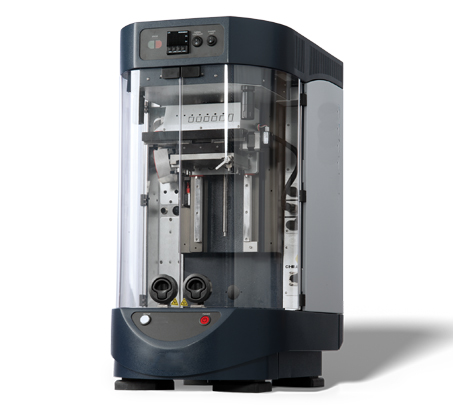

Industrial Multifunction Tribology Testing Equipment Supplier China | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com The Universal Multifunction Tribology Test Machine (UMT Series) is a versatil... |
 |
