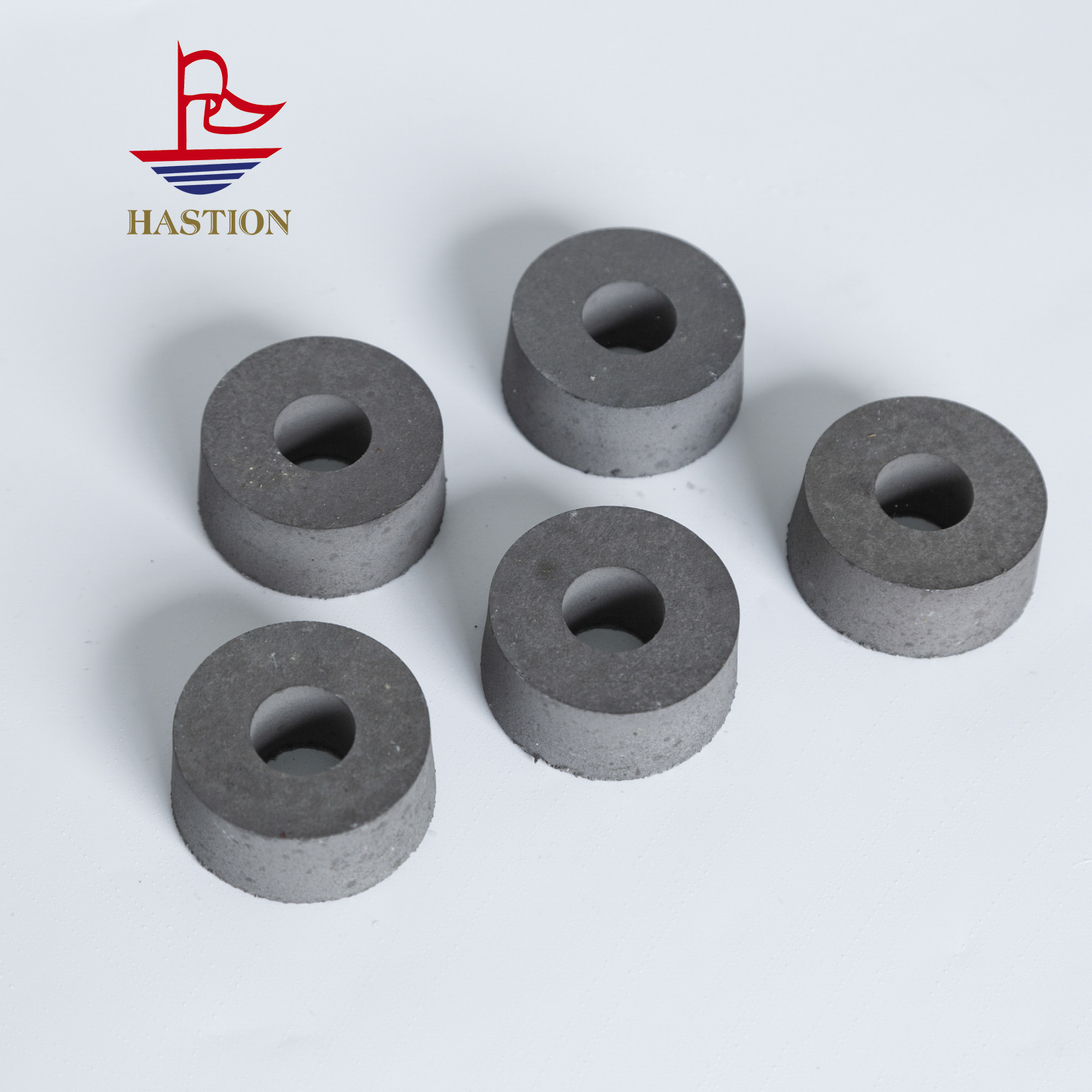

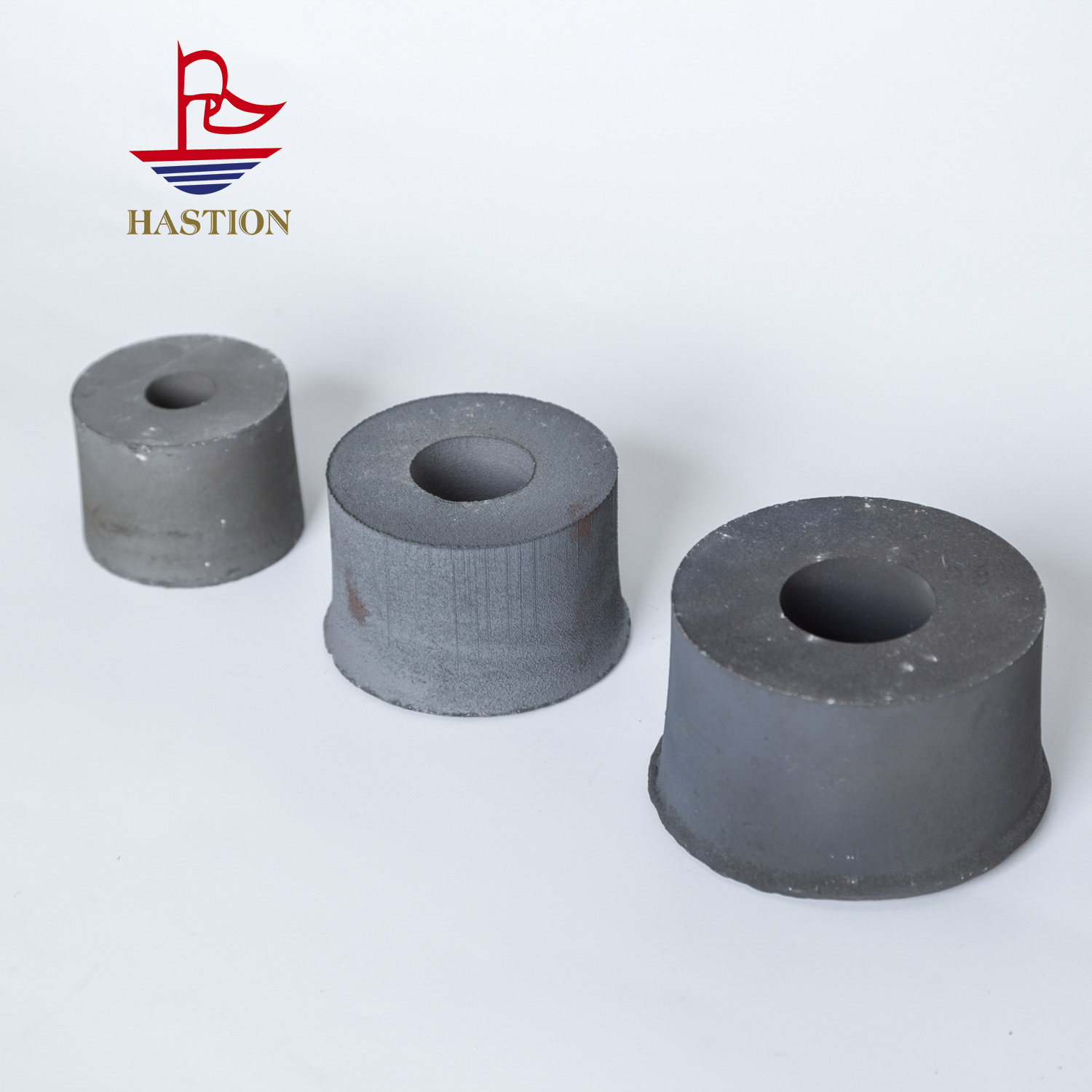

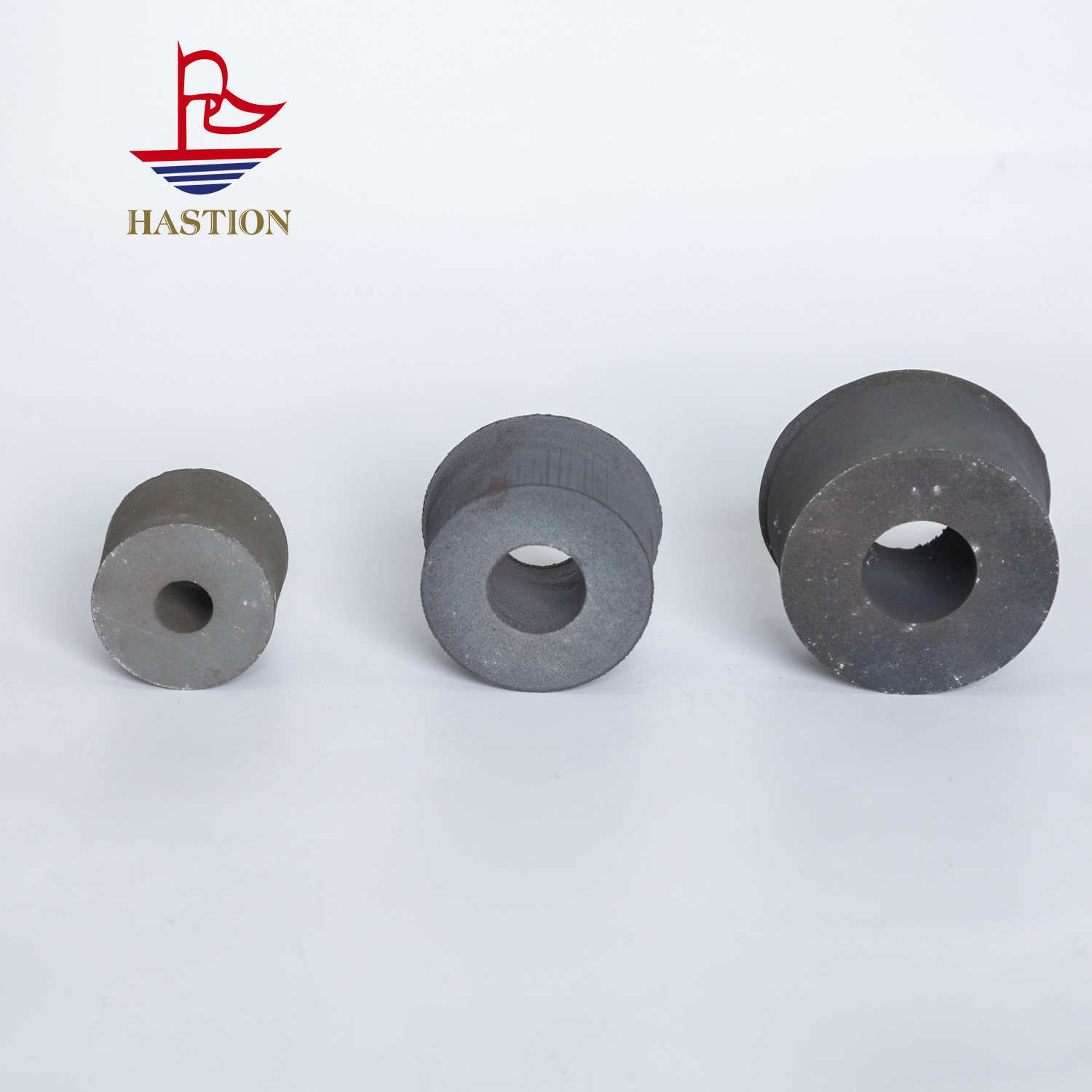

Industrial titanium carbide hard guide wheels
The guide wheel installation holes are manufactured to high precision, enabling the fit clearance with the shaft to be maintained within 0.005–0.01 mm. This ensures smooth rotation without vibration and enhances guiding accuracy. The guide wheels exhibit low maintenance requirements and do not necessitate frequent lubrication; periodic cleaning of surface contaminants is sufficient, making them well suited for continuous operation in automated production lines. In metal wire mesh manufacturing, guide wheels help maintain uniform mesh aperture size, limiting dimensional variation to within 5%, thereby meeting the stringent quality standards required for filter materials. Guide wheels made from tungsten carbide-titanium alloy demonstrate excellent thermal shock resistance, remaining crack-free under rapid temperature fluctuations—from room temperature to 300 °C and back—making them ideal for intermittent production processes. These guide wheels are available in a wide range of sizes, with diameters spanning 50 mm to 500 mm and widths from 10 mm to 100 mm, allowing compatibility with various drawing or rolling equipment. In optical fiber and cable production, they enable precise fiber guidance, maintaining optical attenuation below 0.2 dB/km and ensuring consistent communication quality.
