Qinsun SUNTEST XLS+
Modern desktop models, ideal instruments for 3D samples, equipped with various easy-to-use accessories, allowing SUNTEST to meet your different needs.
SUNTEST XLS+is used to detect short-term changes in the characteristics of materials and products caused by sunlight, temperature, and moisture. The changes that occur in the product outdoors or indoors, such as fading, yellowing, or strength loss, may take several months or years, while in a SUNTEST testing instrument, it often only takes a few weeks to simulate.
Advantage:
According toCIE85advanced solar radiation simulation
Simulate window glass filtering sunlight or artificial supermarket lighting
Excellent test chamber design for testing 3D samples
Easy to use touchscreen user interface with 13 language options
Preset standards for convenient and quick startup operations
Black label temperature sensor (BST) compliant withISO 4892-1standard
Automatic irradiance control to meet different testing requirements
Optional attachments:
SunSpray spray device for weather aging testing
SunFlood immersion device convenient for testing under extreme humidity conditions
SunCool cooling device for testing in low-temperature environments (such as drugs and beverages)
Characteristic:
Desktop design size90 x 54 x 62 cm
39 x 30 cm (1170 cm2)exposed area
1 air-cooled1700 wattxenon lamp tube
Easy to use touchscreen user interface with 13 language options
Directly set and control the irradiation intensity of300-400 nanometers (including 340 nanometers) or 300-800 nanometers (including Lux)
Directly set and control the black label temperature (BST), BPT optional
Display the temperature of the test chamber
Directly control the tolerance range of each test parameter and optimize test control
Display diagnostic information
10 programmable tests, each containing up to 12 stages
Pre set polymer and coating standards can be quickly called up
Tilt the control panel for comfortable operation
Horizontal exposure area of 1170 cm2. suitable for multiple flat or 3D samples
Advanced daylight simulation based on CIE85
Lamp box equipped with aluminum reflector, lamp tube connector, and filter slot
Long lasting uncoated quartz external filter
Range of irradiance 30-65 W/m2 (300-400 nanometers); 0.26-0.62 W/m2 (340 nanometers) or 250-765 W/m2 (300-800 nanometers); 45-130 klx (Lux)
Design of BST sensor in accordance withISO 4892-1
Connect to the network through Ethernet interface, refer to optional XenoTouch software attachments 1. 2. and 3 ("Remote Control", "Email Service", "Online Monitoring")
End test mode ": irradiation dose, light exposure time, or total operating time
Advanced automatic start function
Output data throughRS232or memory card
Internal storage chip for storing tool data
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
Send product request
Other supplier products
 |

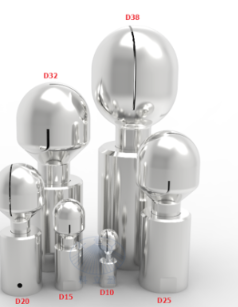

CIP rotary spray ball, tank cleaning spray balls | CIP rotary spray ball, tank cleaning spray ball Model: STD seriescip rotary spray balls Material: 316L ss Connection: BSPP, sli... |
 |

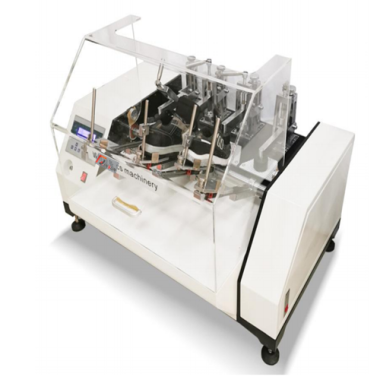

Footwear Flexing Tester | Product Introduction: The finished shoe resistance zigzag tester drives the zigzag part of the finished shoe to zigzag repeatedly with the zigzag ... |
 |

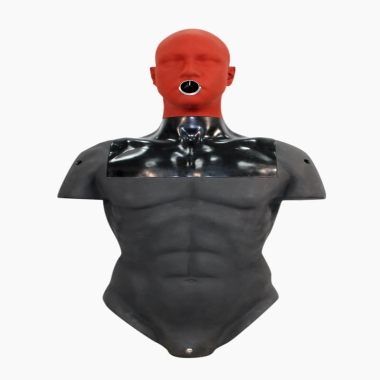

High Temperature Half Thermal Manikin | Product Introduction: This head and torso is designed for testing clothing and headgear in high temperature environments. The head and torso are ... |
 |
