CW61125B Swing over bed 1250mm conventional lathe made in china
CW61125B Swing over bed 1250mm conventional lathe made in china
This series lathe is suitable for large and medium parts processing for castings, steel part and nonferrous metals. It can be used for turning the outer circle, inner hole, section, cutting slot, drilling, boring and nesting.
StandardConfiguration:
1. The overall bed, the width of the guide 755, the tail of the sleeve cone hole: Morse6
2. 1.5 meters below the specifications without the center frame and with a knife
UNIT |
CW61125B |
||
CAPACITIES |
Swing over bed |
mm |
1250 |
Swing over carriage |
mm |
865 |
|
Max.length of workpiece |
mm |
1500-12000 |
|
Max.turning length |
mm |
1300-11800 |
|
SPINDLE |
Effective widthof gap |
||
Pan of guideway |
mm |
755 |
|
Spindle nose |
A2-15 |
||
Spindle bore |
mm |
130 |
|
Taper hole of spindle |
1:20/140 |
||
Range of spindle speeds |
r/min |
3.15~315 |
|
No.of spindle speeds |
21 |
||
FEED |
Longitudinal and cross |
r/min |
56/56 |
Cross/long longitudinal feed |
0.1~12 |
||
TURRET |
No. and range of metric thread |
mm |
44;1~120 |
No. and range of inch thread |
31;28~1/4 |
||
No. and range of module thread |
mm |
45;0.5~60 |
|
No. and range of dia. thread |
38;1/2~56DP |
||
Distance of spindle and tool plane |
mm |
48 |
|
Max.travel of cross slide |
mm |
580 |
|
Max.travel of top slide |
mm |
300 |
|
TAILSTOCK |
Section of tool shank |
mm |
45(260x260) |
Dia. of tailstock |
mm |
100/250 |
|
Rapid travel speeds |
mm/min |
Longitudinal:3740;cross:1870;Little slide:935 |
|
Travel of tailstock quill |
mm |
160 |
|
Taper hole of tailstock quill |
mores 6 |
||
Main motor power |
kw |
22 |
|
OTHERS |
Length |
mm |
4600-15100 |
Width/Height |
mm |
2150/1700 |
|
Max weight of workpiece |
kg |
6000 |

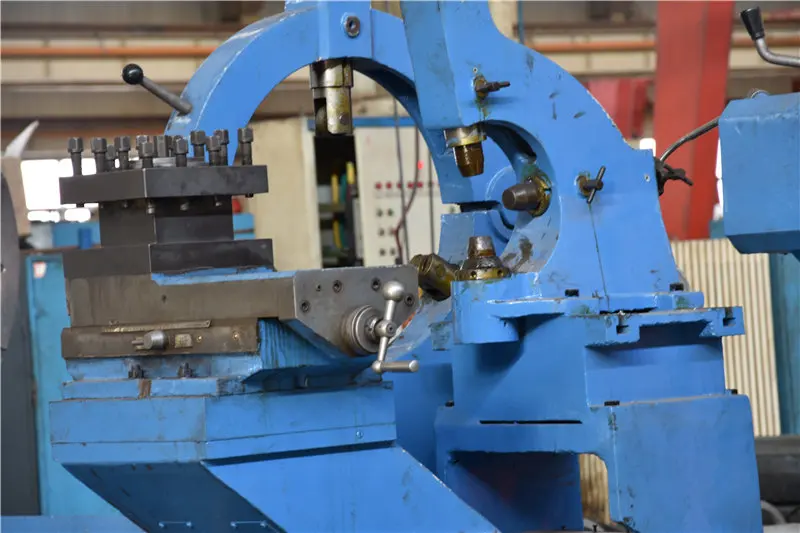

there are two layers of skateboard (medium, small skateboard), the saddle and the frame body together. Used to install the lathe tool and drive the lathe tool for longitudinal, transverse or oblique movement.
When the gear and gear ring are engaged, the four locking claws are connected, synchronously and at the same time, can hold the circular workpiece.When the gear and gear ring are separated, the four claws are independent, which are the same as the original four-jaw chuck.
Anyang Xinheng Machine Tool Co. Ltd.are located in Anyang City, Henan Province. We have always been devoted to the research and manufacture of machine tools. We have LATHE, CNC LATHE, PIPE THREAD LATHE, SPHERE TURNING LATHE etc. Our products are sold both at home and abroad, and they are very popular around the world. Welcome to visit our company!
Product name |
Type |
Swing over bed |
Max.length of workpiece |
Ordinary lathe machine |
CW6163/80/94 |
630~1640mm |
50-12000mm |
CW6180/CW61100 |
|||
CW61100/125/160 |
|||
Heavy duty lathe |
CW61125/140/160 |
1250~2500mm(10t~32t) |
3000-2000mm |
C61125/160/180/200 |
|||
C61160/200/250 |
|||
Spherical lathe |
C6555/95/160/180 |
550~1800mm |
Dia.of spherical:550-1800mm |
CNC lathe machine |
CK6142/52/63/80/94 |
420~1600mm |
750-6000mm |
CKB6180/100 |
|||
CK61100/125/160 |
|||
CNC heavy duty lathe machine |
CKH/CKHJ61125/160/200 |
1250~2500mm(16~63t) |
3000-20000mm |
CK61160/200/220/250 |
|||
CNC pipe thread lathe |
QK1212/19 |
Dia.of pipes:120~460mm |
750-2800mm |
QKP/QKA1226/46 |
|||
Mini lathe |
CJK0632/0632J |
200~500mm |
260~1000mm |
CJK0640/60/80 |
|||
CK6132/36/40/50 |
