Sloped Impact Tester

Sloped Impact Tester
  • Sloped Impact Tester
Производитель: Standard International Group (HK) Limited

Все товары поставщика
Отправить запрос, связаться с поставщиком

Standard

      • ASTM D7748: Impact resistance testing of packaging and transport systems.
      • ISO 13355: Automotive component durability evaluation under oblique load conditions.
      • ISTA 3E: Simulates truck collision scenarios for palletized freight testing.

Product Advantages

1. Rapid Precision Deployment

      • Pneumatic Positioning: Sub-0.1mm repeatability for crash velocity calibration.
      • Tool-Free Adjustment: Dial-in impact speeds from 2–12 ft/sec (0.6–3.7 m/s).

2. Modular Impact Configuration

      • 6 Load Capacities: 1,000–10,000 lbs (454–4,536 kg) for consumer goods to industrial machinery.
      • Scalable Collision Surfaces: Up to 96” × 96” (2.4m × 2.4m) for full-scale product testing.

3. Advanced Data Acquisition

      • 4-Channel TLP System: 100 kHz sampling rate captures peak G-forces and deformation.
      • Bi-Directional Velocimetry: 1,000VM laser sensor with 0.01 ft/sec resolution.

4. Ergonomic Workflow

      • Low-Profile Sled: 8” ground clearance for forklift-free specimen loading.
      • Self-Centering Guides: Automatic alignment for repeatable impact angles.

5. Industrial Durability

      • Hardened Steel Targets: AR500-grade collision plates resist deformation.
      • Sealed Drive System: IP67-rated motor for dusty/wet environments.

Product Features

      • Impact System:
        • Pneumatic Launcher: 0–8 ft/sec (0–2.4 m/s) in 0.1 ft/sec increments.
        • Fail-Safe Braking: Hydraulic deceleration system with 10g emergency stop.
      • Data Acquisition:
        • TLP Pro Software: Real-time force-time curves and energy dissipation analysis.
        • Unit Conversion: Toggle between imperial (lbs, ft/sec) and metric (kg, m/s).
      • Safety Systems:
        • Enclosure interlocks with laser safety curtains.
        • Overload protection at 110% of rated capacity.
      • Sled Design:
        • Reinforced steel frame with replaceable aluminum impact face.
        • Adjustable height collars for 0°–15° oblique angles.
      • Mobility:
        • Forklift pockets and lifting eyes for warehouse relocation.
        • Collapsible guardrails for narrow-aisle storage.

Technical Parameters

ModelLoad CapacityCollision SurfaceSled SizeMax. SpeedSimulated Drop Height
Ⅱ1000 1,000 lbs 60” × 60” 48” × 48” 8 ft/sec 18”
Ⅱ2000 2,000 lbs 72” × 72” 60” × 60” 8 ft/sec 18”
Ⅱ4000 4,000 lbs 84” × 84” 72” × 72” 8 ft/sec 18”
Ⅱ6000 6,000 lbs 84” × 84” 72” × 72” 8 ft/sec 18”
Ⅱ8000 8,000 lbs 84” × 84” 72” × 72” 8 ft/sec 18”
Ⅱ10000 10,000 lbs 96” × 96” 84” × 84” 8 ft/sec 18”

Accessories & Options

      1. Collision Surface Upgrades:
        • AR600 steel targets for high-abrasion testing.
        • Replaceable rubber bumpers for soft-impact simulation.
      2. Software Add-Ons:
        • CrashView Pro™: High-speed video synchronization (up to 10,000 fps).
        • Cloud Safety: Remote monitoring for global compliance teams.


Отправить запрос, связаться с поставщиком

Кому: Standard International Group (HK) Limited
Ваш E-mail:
Текст письма:


Send to other suppliers

Другие товары поставщика

Precision Fiber Slicer
 Precision Fiber Slicer G214Precision Fiber Slicer is used to make the accurate fiber cross-sectional specimens for further inspection or research under the microscope. In...
Plastic ball indentation hardness meter
 Plastic ball indentation hardness meter Scope of application: It is used to measure the characteristics of the plastic drainage plate in the plane direction of the water flow under the s...
Femoral Stem Fatigue Performance Testing Machine
 Femoral Stem Fatigue Performance Testing Machine Standard YY/T 0809.4 (China): Specifies fatigue testing protocols for femoral stems in partial/total hip arthroplasty. ISO 7206-4 (International)...
High Velocity Impact Testing Machine
 High Velocity Impact Testing Machine Main Purpose To test the impact - resistance performance of glasses, goggles and face shields at a certain speed. Applicable Standards SNELL S...
Contact heating and cooling tester
Contact heating and cooling tester Test standard JIS L 1927Textiles-Measurement method of cool touch feeling property GB/T 35263-2017Textiles-Testing and evaluation for cool sensat...
Все товары поставщика

Похожие товары

Plastic Smoke Density Tester F313
 Plastic Smoke Density Tester F313 Продавец: Standard International Group (HK) Limited The F313 Plastic Smoke Density Tester is a precision instrument designed to measure the specific ...

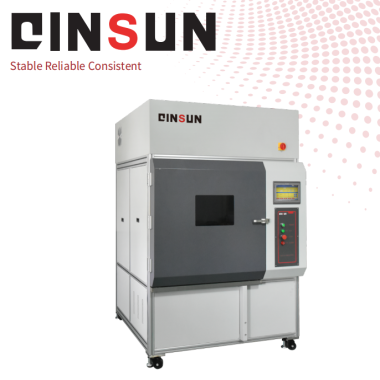

Xenon Test Chamber
