Water-cooled Light & Weather Fastness Tester -QINSUN SI 4000
SI4000 water cooled sunlight fastness tester -The color and properties change of textile dyes can be tested by using argon arc lamp to simulate and control the most ideal natural climate and daylight experiment conditions. The aging resistance of materials can also be tested, and the service life of products can be accurately tested on the basis of good repeatability and reproducibility.
Introduction
Standards compliant
AATCC TM16.3 Colorfastness to Light: Xenon-Arc
AATCC TM169 Weather Resistance of Textiles: Xenon Lamp Exposure
AATCC TM16E Colorfastness to Light
ASTM C1257 Standard Test Method for Accelerated Weathering of Solvent-Release-Type Sealants
ASTM C1442 Standard Practice for Conducting Tests on Sealants Using Artificial Weathering Apparatus
ASTM C1501 Standard Test Method for Color Stability of Building Construction Sealants as Determined by Laboratory Accelerated Weathering Procedures
ASTM C1519 Standard Test Method for Evaluating Durability of Building Construction Sealants by Laboratory Accelerated Weathering Procedures
ASTM C732 Standard Test Method for Aging Effects of Artificial Weathering on Latex Sealants
ASTM C734 Standard Test Method for Low-Temperature Flexibility of Latex Sealants After Artificial Weathering
ASTM C793 Standard Test Method for Effects of Accelerated Weathering on Elastomeric Joint Sealants
ASTM D1148 Standard Test Method for Rubber Deterioration?Discoloration from Ultraviolet (UV) or UV/Visible Radiation and Heat Exposure of Light-Colored Surfaces
ASTM D1670 Standard Test Method for Failure End Point in Accelerated and Outdoor Weathering of Bituminous Materials
ASTM D2565 Standard Practice for Xenon Arc Exposure of Plastics Intended for Outdoor Applications
ASTM D3424 Standard Test Methods for Evaluating the Relative Lightfastness and Weatherability of Printed Matter
ASTM D3451 Standard Guide for Testing Coating Powders and Powder Coatings
ASTM D4101 Standard Specification for Polypropylene Injection and Extrusion Materials
ASTM D4303 Standard Test Methods for Lightfastness of Pigments Used in Artists' Paints
ASTM D4355 Standard Test Method for Deterioration of Geotextiles from Exposure to Ultraviolet Light and Water (Xenon-Arc Type Apparatus)
ASTM D4434 Standard Specification for Poly(Vinyl Chloride) Sheet Roofing
ASTM D4459 Standard Practice for Xenon-Arc Exposure of Plastics Intended for Indoor Applications
ASTM D4637 Standard Specification for EPDM Sheet Used in Single-Ply Roof Membrane
Major Features
Intelligent touch screen control panel
Microcomputer control system, more efficient and more reliable, programmable 7 inch color LCD touch screen, control, detection, calculation, data display and other functions.
powerful software function
Enhanced control system can handle complex custom procedures and simple pre-programming test, simple operation page icon is clear and easy to understand;Irradiance, temperature and humidity are adjustable.
Multidirectional protection design
Instrument with irradiance monitoring, lamp power monitoring, water quality monitoring, temperature monitoring, water level to limit, lack of protection, water flow monitoring, dry burning protection, leakage protection
large test area
Imported xenon lamp, new water-cooled xenon lamp cooling system, good cooling effect, low cooling water consumption, large experimental box, can test up to 65 samples at a time, the sample rack can be rotated, improve the exposure consistency of all
Irradiance closed-loop monitoring and automatic regulation
The instrument can meet a variety of band light source testing, can be regularly through the irradiance calibration device automatic calibration, irradiance calibration device through the certification of the authority of the metering institutions.
Field Application
SI4000 water cooled sunlight fastness tester is widely used in plastics, paint coating, ink, packaging, automotive materials, photochemical materials, pigment dyes and textiles and other industries.
It is applicable to the performance verification of new products, quality control of the production department, and the of material properties for the third-party testing organization, the product performance verification laboratory, and the quality and technical supervisiondepartment, etc.
Technical Parameters
|
Operation mode: automatic The oblique angle of sample rack :28±2angle the roatate speed of sample rack : 1RPM/adjustable |
The full diameter of sample rack : 648±6mm The minor diameter of sample rack :511±6mm |
|
Service lift(1 solar standard): 1200H |
pressure: 38-345kPa (20-50psi) |
|
filter:internal and external filters can be replaceable Irradiance control:340/420 or300-400nm select single point automatic control, optional second point monitoring |
Humidification:deionized water0.12l/min |
|
Box temperature:25-100 C |
Sample spray: deionized water0.07l/min |
|
Relative humidity control:automatic |
Sample rack spray:deionized water 0.07l/min |
|
Humidity range :lightcycle:10-75%, dark cycle10-100% |
Light source:6500W water-cooled xenon arc lamp HVAC-MJ/h (BTU/h)(max): |
|
Temperature control:automatic |
|
|
blackboard and black label temperature: BPT 40-110C / BST40-120 C |
Power:380V/220V 50Hz |
|
At the same control BPT or BST and the box tem perature:standardBPT/BST |
weight:550kg |
|
specimen frame type:three layer |
Dimension : 1500mmX1400mmX2200mm |
Our xenon lamp weathering machine can use Atlas ci4000 lamp tubes, which have the same performance and spectral range as Atlas xenon lamp weathering machines, and meet all the testing standards of Atlas similar models. It is the most perfect alternative to Atlas xenon lamp weathering machines. At the same time, the company provides complete machine installation and after-sales service.
Our xenon lamp weathering tester can replace the Atlas CI4000 xenon lamp weathering tester of the same model. It can be installed with the original Atlas lamp tube, and the spectrum and performance are exactly the same as the Atlas xenon lamp weathering tester, making it a perfect replacement for the Atlas xenon lamp weathering tester.
Отправить запрос, связаться с поставщиком
Другие товары поставщика
 |
Spectrophotometer ISO 7724 | Standard CIE No.15. ISO 7724-1: Meets international colorimetry and spectral measurement standards. ASTM E1164. DIN 5033: Compliant with industri... |
 |
Automatic thermal deformation Vica softening point tester | Product Introduction: 1. Name: Thermal deformation, Vica softening point temperature tester 2. Model :STD-G-1 3. Product introduction: thermal d... |
 |
Safety shoe impact testing machine / Safety shoes testing machine | According to the criteria: Bs-953.1870 EN-344. ANSI-Z41 CSA-Z195 ISO K88782 EN ISO 20344. ANSI-Z41 BS EN-344 CSA-ZI95 Product Advantages:... |
 |
Carbon black content measuring machine丨Carbon Black Content Tester | Scope of application: Used to determine the carbon black content of rubber, polyolefin plastics, polyolefin pipes and fittings, and raw materials ... |
 |

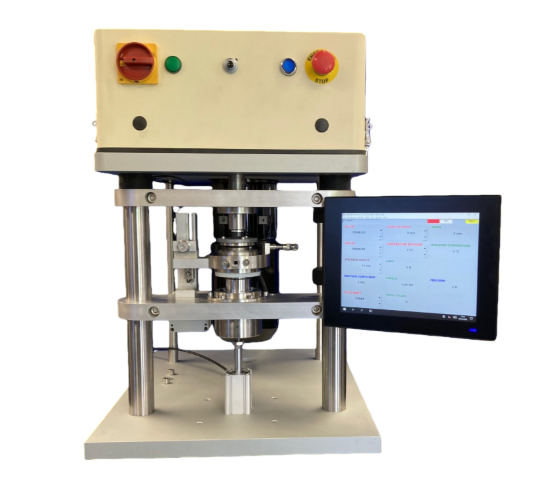

Friction and wear testing machine - Friction / Wear Mechanical Testing Equipment | Standards ASTM G99-04 ASTM G77-16 ISO 9352:1995 GB/T 12444-2006 GB/T 12607-2007 GB/T 1865-2009 Application field Petrochemical: Used to ass... |
