2 station seatbelt webbing abrasion tester for automotive safety testing

Whats/App: +86 156 1874 6768

Web: standard-groups.com

Standards

The tester complies with major international and automotive standards for seatbelt and webbing testing, including:

FMVSS 209 — Federal Motor Vehicle Safety Standard for Seatbelt Assemblies

ASTM D6770 — Standard Test Method for Abrasion Resistance of Textile Webbing

FED STD 191 — Federal Standard Test Methods for Textile Fabrics

MIL-232223B / MIL-T8363B — Military Standard for Webbing Materials

SAE J339 — Automotive Seatbelt Performance Standard

S5 1(d) — Durability Test Requirement

Designed specifically to meet FMVSS 209 requirements, this tester addresses the three core criteria of strength, performance, and durability for seatbelt components.

Technical Specifications

Item	Specification
Test Stations	2 independent stations (dual testing capability)
Sample Type	Seatbelt webbing, lap belts, shoulder straps, etc.
Cycle Range	1–999.999 cycles adjustable (default 2.500 cycles)
Abrasion Material	Standard coarse test surface (replaceable)
Loading Method	Simulated belt routing and sliding friction
Control System	Digital counter with automatic stop at preset cycles
Structure Type	Compact benchtop design
Power Supply	AC 220V, 50Hz

(Note: Custom configurations available upon request.)

Features

Dual-Station Design for Higher Efficiency – Enables simultaneous testing of two specimens, improving productivity.

Automatic Cycle Control – User-defined test cycles with automatic stop function for accurate, repeatable results.

Precision Engineering – Durable mechanical components and low-friction bearings ensure long-term reliability.

Multi-Standard Compatibility – Supports ASTM, FMVSS, SAE, and MIL standards for versatile use.

Visual and Quantitative Evaluation – Allows both visual inspection and strength measurement after testing.

Compact Benchtop Configuration – Space-saving, easy to operate, ideal for laboratory environments.

Test Procedures

Install the seat belt fabric sample in the fixture and ensure it is securely fixed.

Adjust the friction device so that it contacts the fabric properly.

Set the desired cycle count and start the automated test program.

The test stops automatically when the cycle count is reached.

Inspect the sample visually and perform strength tests to evaluate abrasion performance.

Compare pre- and post-test results to assess material durability.

Maintenance Information

Keep friction surfaces clean and free from debris.

Inspect fixtures and moving parts for wear regularly.

Calibrate electronic counter periodically to ensure accuracy.

Ensure safe operation and avoid contact with moving components during testing.

Store the tester in a dry, dust-free environment to prolong lifespan.

Другие товары поставщика

	Large Flame Exposure Test Chamber for Certification Laboratories	Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com E-mail：info@standard-groups。com Parameters FeatureDescription St...
	Laboratory Particle Strength Measurement Machine ISO Standard	Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards (1) ASTM D4179 — Standard Test Method for Single-Pellet Pres...
	ISO 22612 microbial barrier tester for protective clothing	Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Y/T 0471.5-2017 is a newly updated standard, which specifies the experimental...
	Large Walk-in Aging Chamber Manufacturer | IEC 60068 Thermal Aging Testing Solutions	Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Application This equipment is suitable for environmental aging and reliabili...
	Scratch tester STD-KK02	Whats/App: +86 156 1874 6768 Web: standard-groups.com Product introduction: With the continuous expansion of the use of plastic molding products...

Все товары поставщика

Похожие товары

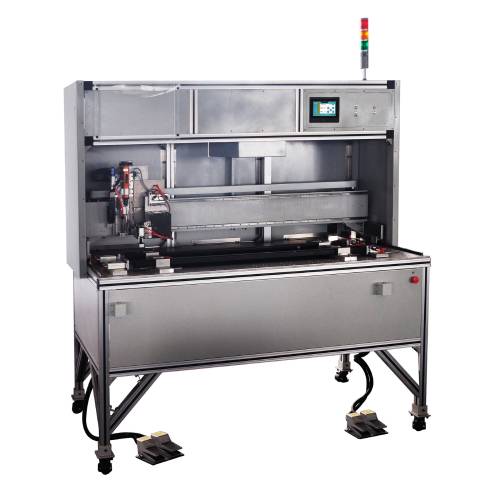

	Industrial automotive sunshade end cap assembly line supplier	Продавец: Standard International Group (HK) Limited	Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The assembly line is designed ...

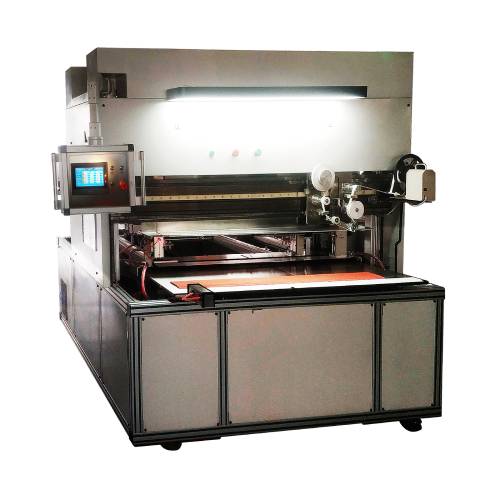

	High precision vehicle sunshade assembly machine	Продавец: Standard International Group (HK) Limited	Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards The system is designed and man...

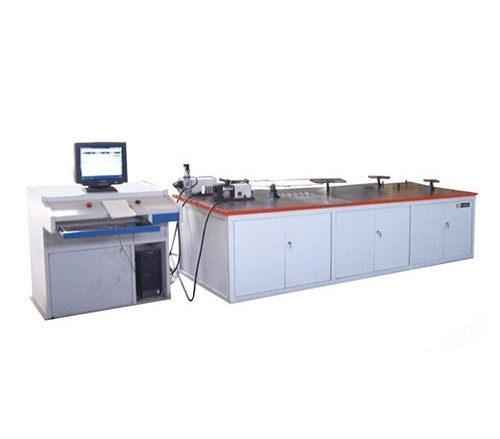

	High precision control cable performance testing machine	Продавец: Standard International Group (HK) Limited	Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards (1) Q/CT 29101-92 — Auto...

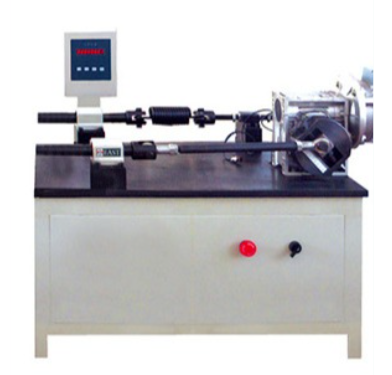

	Industrial automotive & motorcycle cable fatigue tester supplier	Продавец: Standard International Group (HK) Limited	Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards (1) QC/T 29101-92 — Auto...
