Upgrade Your Repair Process with HD Vision

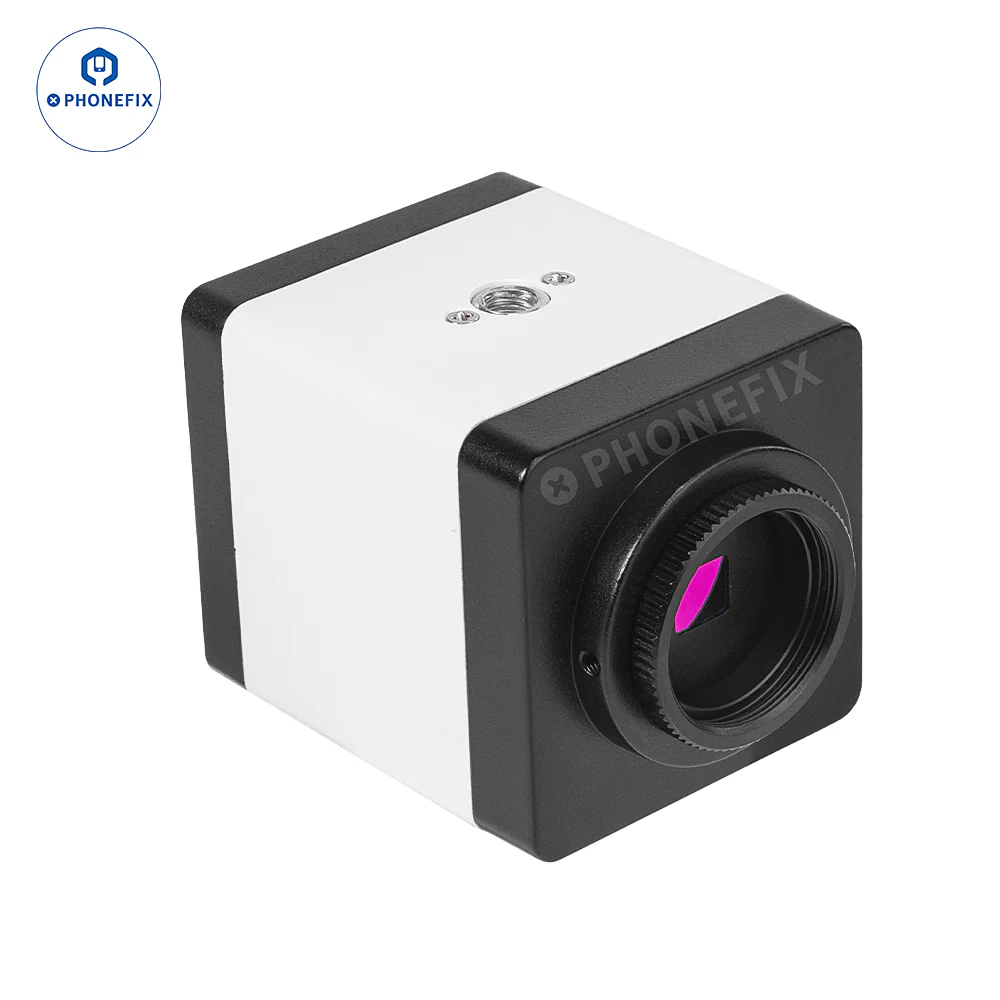

H2630VT-D50 2MP HD Industrial Camera with HDMI VGA Tape-C 3 simultaneous output interfaces, 1/3 inch @ 60FPS, 2.8UM*2.8UM pixel size, supports electronic zoom, 8 resolutions and 10 languages. CS lens mount is compatible with most trinocular stereo microscopes. It's ideal for repairing mobile s, laptops, tablets, and motherboard BGA chips.
Features:

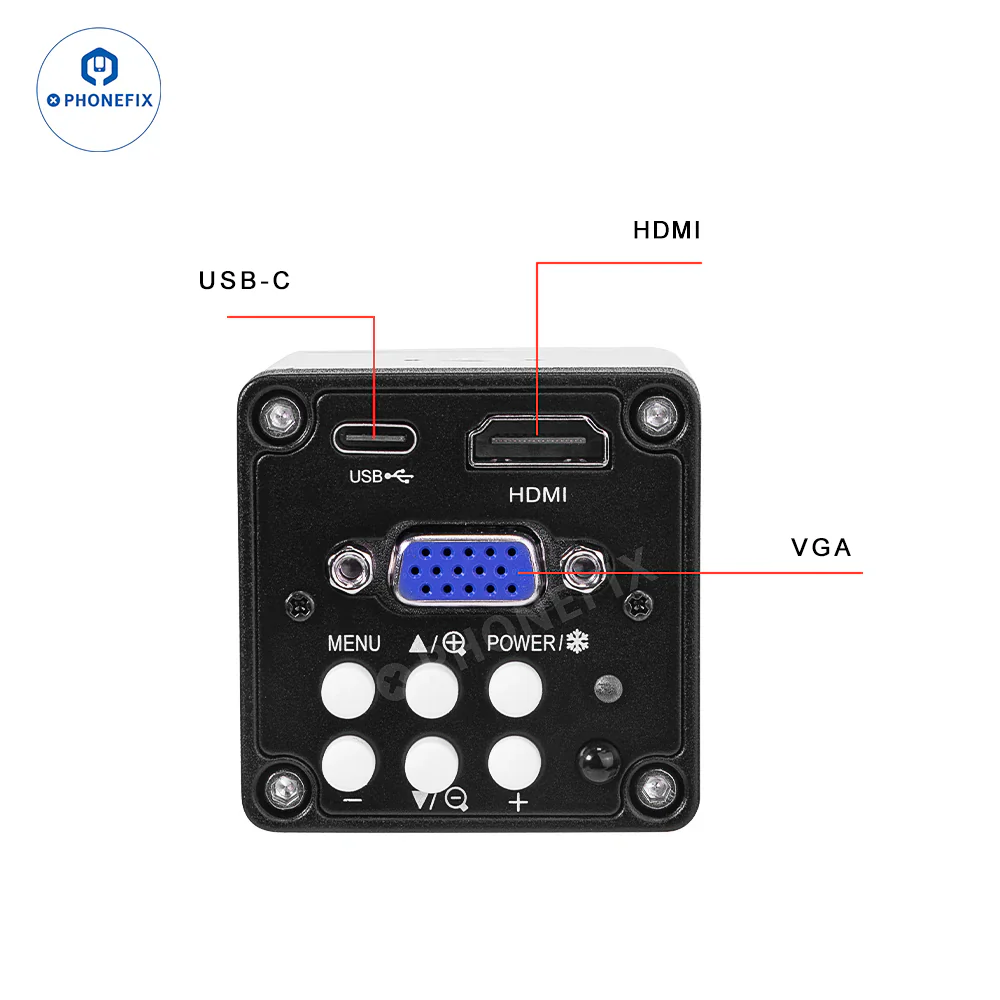

1. Three simultaneous output interfaces: HDMI + VGA + Type-C, offering strong compatibility and support for simultaneous viewing on multiple devices.
2. High-Definition Imaging: Utilizing a 1/3-inch sensor, 2 million effective pixels, and 1200 TVL resolution, images are crisp and clear.
3. High Frame Rate Performance: Supports up to 60 FPS progressive scan output, eliminating artifacts in dynamic images.
4. Comprehensive Image Settings: Manually adjust brightness, contrast, saturation, sharpness, noise reduction, and other parameters.
5. Powerful OSD Menu: Supports single-shot white balance, auto/manual white balance, HDR, mirror image flip, freeze image, and more.
6. Crosshair Assist: Four crosshair groups, up to 32 horizontal and vertical lines, with adjustable position, color, and line width, assisting with precise alignment.
7. Multi-Language Support: Built-in menus in 10 languages (Chinese, English, Traditional Chinese, Japanese, French, Spanish, German, Italian, Portuguese, and Russian).
8. Electronic Zoom In/Out: Quickly zoom in and out to view details even when the menu is not displayed.
9. Compact Design and Convenient Operation: Compact size and wireless remote control support.
10. Anti-misoperation mechanism: Supports factory reset and low-resolution safe boot.
H2630VT-D50 2MP HD Camera Manual:
Specifications:
Model: H2630VT-D50
Output Ports: HDMI + VGA + Type-C (three ports simultaneously output)
Lens Mount: CS Mount
Image Sensor Size: 1/3-inch
Effective Pixels: 2MP
Pixel Size: 2.8μm × 2.8μm
Output Resolution:
1920x1080
1600x900
1440x900
1280x1024
1280x720
1024x768
Frame Rate: 60 FPS (maximum)
Resolution: 1200 TVL
Scanning Method: Progressive
Shutter Type: Electronic Shutter
Dynamic Range: 69dB
Signal-to-Noise Ratio (S/N): 54dB
Image Enhancement: HDR, B/W Mode, Image Freeze, Mirror Flip
White Balance Modes: One-Shot White Balance / Manual / Automatic
Electronic Adjustment: Adjustable brightness, contrast, sharpness, and saturation
Crosshair Function: Supports 32 adjustable lines with customizable color, width, andposition
Remote Control Support: Supports wireless remote control
Video and Photo Capture: Not supported
Power Supply: USB (12VDC recommended)
Operating Current: 200mA
Dimensions: 50 x 50 x 65 mm
Factory Reset: Supported
Language Support: 10 languages (Chinese, English, Traditional Chinese, Japanese, French, Spanish, German, Italian, Portuguese, Russian)
