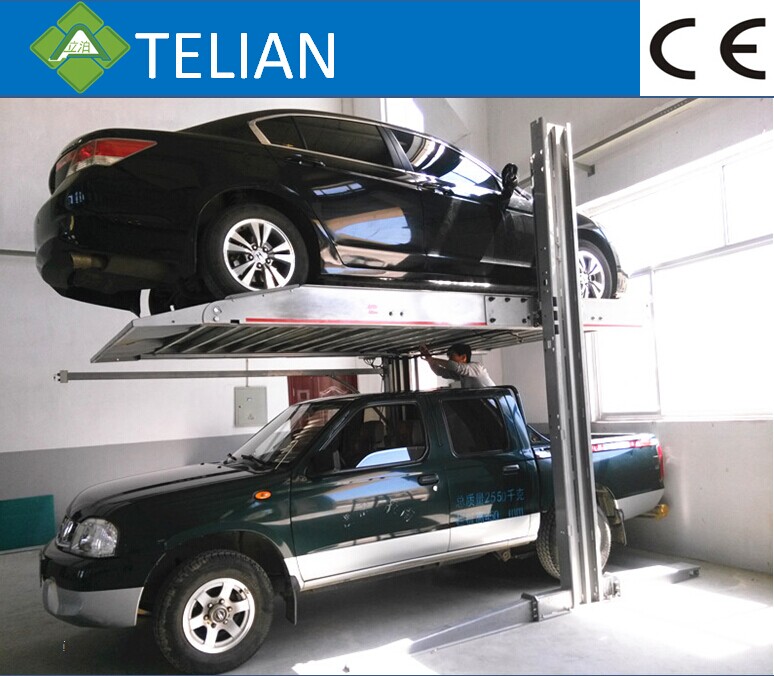

two post car lift and double cylinder hydraulic
TWO POST PARKING LIFT
Equipment description:
- This parking system is designed of up and down as one unit.The bottom car can go in and out directly.

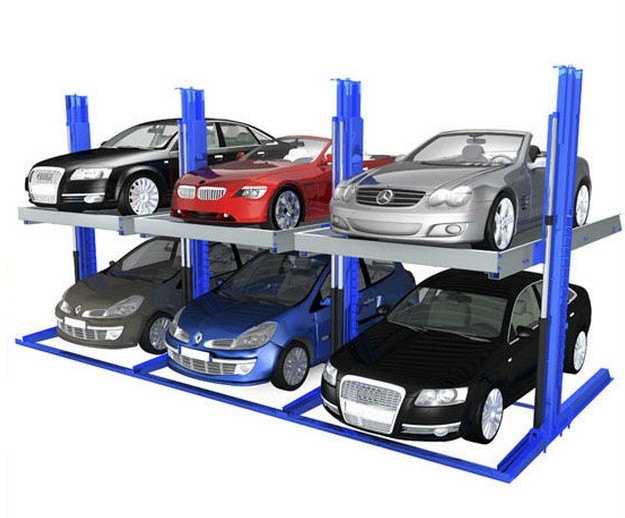

- When the upper space needs to park a car,the car in the bottom should be driven out;It can be widely used in hotels,enterprises and public instititions and residential area.Column can be N+1 from,saving land area,fulluse of space,property rights;
- Hydraulic drive,chaincing device to ensure the balance both ends of rise and fall;
- Low noise,smooth operation,save energy,low carbon and environmental protection.
- Vehicle loading pallet fully encloused design,to avoid oil leakage,rain and snow Polluting the lower vehicles.
- Spraying plastics,high anti-corrosion ability,long life.Electrical and driving parts with waterproof charateristics.
- Simple structure,easy installation,minimal requirements for engineering.
Equipment parameter:
|
Name |
Two Post Parking Lift |
|
Model |
PTJ 201-27 |
|
Dimension |
4529*2560*3500mm |
|
Weight of parking car |
2700kg/ 5947lbs |
|
Rated speed |
2m/min |
|
Lifting height |
2100mm |
|
Total height |
3500mm |
|
Size of vehicle loading pallet |
4166*2100mm |
|
Motor |
|
|
Warming devices |
Yes |
|
Mode of operate |
Button / IC card / Remote key |
|
Mode of control |
PLC control |
|
Mode of drive |
Hydraulic driving, chain balance |
|
Electrics motor |
380v,3 phase; 220v single phase (by ordered) |
|
Package size |
3850*1000*970mm |
|
weight |
1100kgs |
|
20’ container |
11set |
|
40’ container |
22set |
Equipment advantages:
- Anti-dropping device: to prevent the vehicle loading pallet from undesired disconnection.
- Limited switch device: to protect the equipment running.
- Photoelectric switch (device for checking the entrance of people and vehicles): to prevent the people from accidently entering into the equipment under operation.
- Emergency switch: the emergency switch button is used to cut power off when there is anything abnormal during the equipment process.
- Used cylinder reversal, have many advantages, not distortion, dustproof.
- Adopt Italy Aston Seal ring.
- Adjusting lifting height， the maximum lifting height can be 2200mm. Usually, lifting height is 1900mm, 2000mm or 2100mm.
- Lifting capacity can be 2700kgs.
- Structure all adopts layer cutting, attractive appearance, easy installation, less questions, easy maintenance.
- The width of car carrier board is 2100mm.
