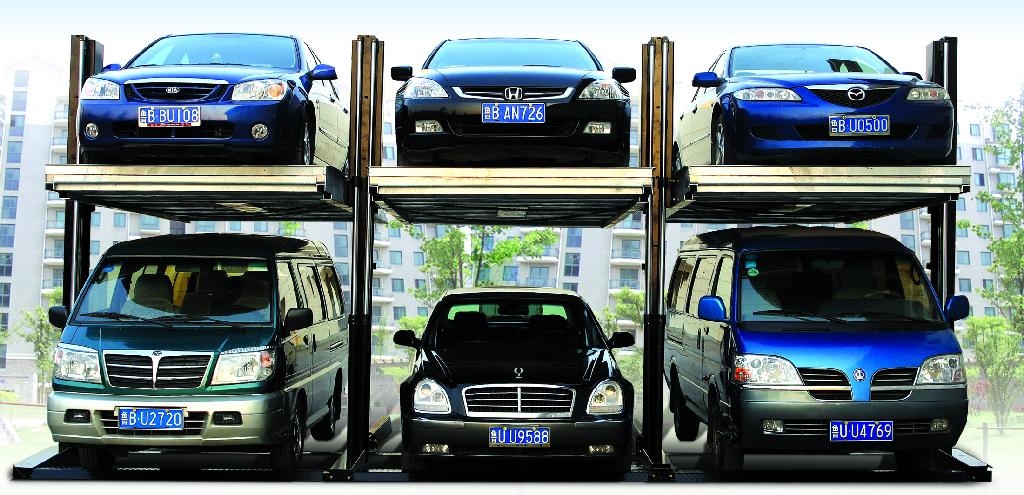

2700kg two post parking lift and CE cerfitication
EQUIPMENT DESCRIPTION:
- This parking system is designed of up and down as one unit.The bottom car can go in and out directly.
- When the upper space needs to park a car,the car in the bottom should be driven out;It can be widely used in hotels,enterprises and public instititions and residential area.Column can be N+1 from,saving land area,fulluse of space,property rights;
- Hydraulic drive,chaincing device to ensure the balance both ends of rise and fall;
- Low noise,smooth operation,save energy,low carbon and environmental protection.
- Vehicle loading pallet fully encloused design,to avoid oil leakage,rain and snow Polluting the lower vehicles.
- Spraying plastics,high anti-corrosion ability,long life.Electrical and driving parts with waterproof charateristics.
- Simple structure,easy installation,minimal requirements for engineering.
EQUIPMENT PARAMETER:
|
Model |
PTJ 201-27 |
|
Dimension |
4529*2560*3500mm |
|
Weight of parking car |
2700kg/ 5947lbs |
|
Rated speed |
2m/min |
|
Lifting height |
2100mm |
|
Total height |
3500mm |
|
Size of vehicle loading pallet |
4166*2100mm |
|
Motor |
|
|
Warming devices |
Yes |
|
Mode of operate |
Button / IC card / Remote key |
|
Mode of control |
PLC control |
|
Mode of drive |
Hydraulic driving, chain balance |
|
Electrics motor |
380v,3 phase; 220v single phase(by ordered) |
|
Package size |
3850*1000*970mm |
|
weight |
1150kgs |
|
20’ container |
10set |
