Induction Hardening Machine
Induction Hardening Machine
The induction heating and quenching machine toolis one of Duolin complete sets of induction hardening equipment.The Vertical or horizontal machine tool is mainly used to process shafts parts, gear, bar and also can quenching some special workpieces.
Technical information
It is suitable for matching with high frequency, medium frequency induction power supply.The CNC hardening machineadopts liquid spray cooling method and can meet the general hardening requirements of the manufacture or heat treatment shop.The CNC scanner is servo mechanical drive and automatic quenching process.It is mainly used for metal hardening, but can be also used for annealing or welding heating process, with manual and automatic function, simple operation and easy to handle.
Set hardening program parameter, like heating time, cooling time, rotate time, cooling capcacity etc, to get different hardeness and depth layer when parts drawing changed.
Induction Hardening MachineFeature
1: Welding and Door frame structure, special design for heavier hardening part
2: Spindle design, ensure the accuracy and load requirements of workpiece rotation. The rotation adopts frequency conversion speed control, which can be manually adjusted or set through the numerical control screen, equipped with position chuck, which can easily clamp workpieces with the largest diameter.
3: Variable frequency speed regulating motor to rotate the quenching part, protect the motor from wet environment
4: The quenching transformer moves through the linear guide rail, and its movement is controlled by the servo motor driven by the lead screw.
5: It can accurately realize the speed change of preheating, heating and heat preservation, and the heating process is set and implemented by the numerical control program to maximize the overall quenching quality of the workpiece
6: Tranformer move by servo motor, position by digital input, accurancy 0.01mm, speed range 150mm/s
7: The CNC system does not require travel switches and time relays. The loading and unloading positions, heating positions, cooling positions and heating distances are all accurately positioned by servo motors. Quenching time, lifting speed, rotation speed, etc. can be directly input and controlled from the CNC panel.
8: More than 60 quenching programs can be stored for users to call at any time. It is especially suitable for complex process requirements such as multi-stage, variable speed and many types of workpieces.
9: Easy to installation and operation, convenient maintenance. The main parts are made of Taiwan mechanical and electrical products, with long service life and low maintenance cost.
Visit our website
在线联系供应商
Other supplier products
 |
IGBT Induction Heating Machine | IGBT Induction Heating Machine Power:100--1000KW Work Frequency:0.5-10Khz Application:For billet partial and total hot forging Turnkey inductio... |
 |
30-50KW High Frequency Induction Heating Machine | 30-50KW High Frequency Induction Heating Machine Power 30-300KW Work Frequency 50-250Khz Digital display Constant power and current output Safe,... |
 |
Reform the Manual Production Line to Automatic | Reform the Manual Production Line to Automatic Under background of industry 4.0 and customer new request for saving the labor, full and semi-autom... |
 |
30-160KW 10-30Khz Induction Heating Machine | 30-160KW 10-30Khz Induction Heating Machine Ultrasonic induction heating equipment IGBT inverter used, high efficiency and low energy consumption... |
|
|
Induction Hardening Machine | Induction Hardening Machine The induction heating and quenching machine toolis one of Duolin complete sets of induction hardening equipment.The Ve... |
Same products
|
|
Induction Hardening Machine | 卖方: Chengdu Duolin Electric Co.,Ltd | Induction Hardening Machine The induction heating and quenching machine toolis one of Duolin com... |
|
|
IGBT Induction Heating Machine | 卖方: Chengdu Duolin Electric Co.,Ltd | IGBT Induction Heating Machine Power:100--1000KW Work Frequency:0.5-10Khz Application:For bill... |
|
|
30-50KW High Frequency Induction Heating Machine | 卖方: Chengdu Duolin Electric Co.,Ltd | 30-50KW High Frequency Induction Heating Machine Power 30-300KW Work Frequency 50-250Khz Digita... |
 |

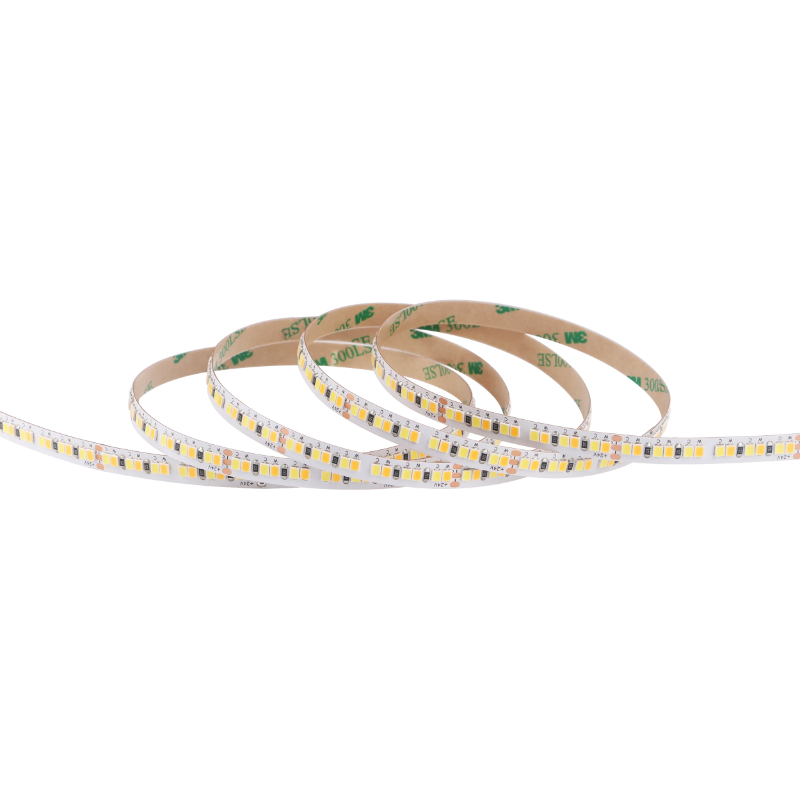

CCT Flexible Led Strip | 卖方: Shenzhen Blue Diamond Technology Co.,Ltd | CCT Flexible Led Strip CCTFlexible LED Stripuses a 10mm wide flexible PCB with an operating volt... |
 |

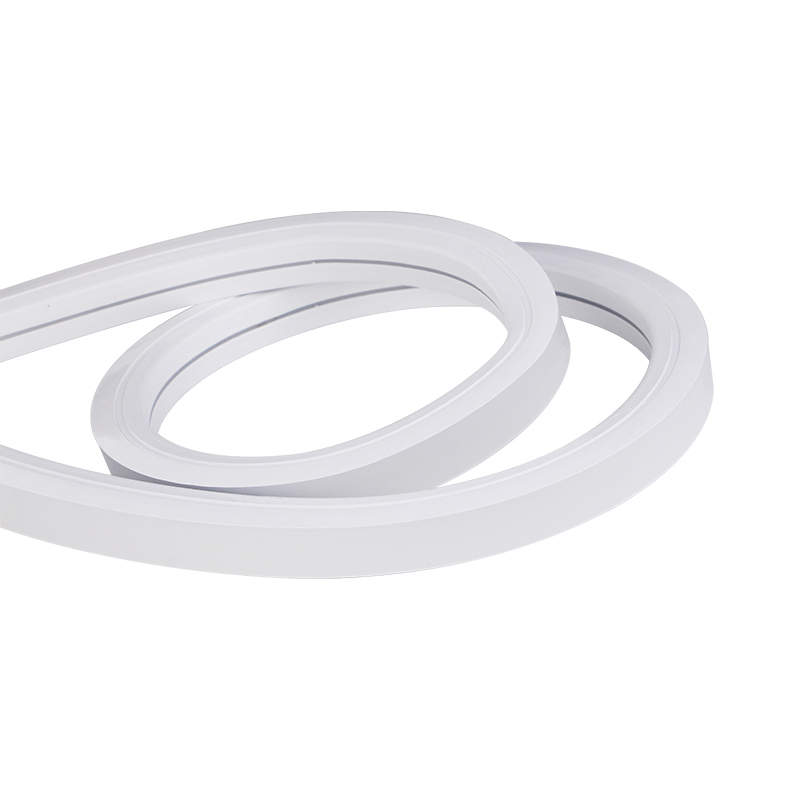

Neon Flex LED Strips 10X18mm | 卖方: Shenzhen Blue Diamond Technology Co.,Ltd | Neon Flex LED Strips 10X18mm Silicone neon flex LED Stripsmainly apply to courtyard, building, b... |
