PV module acid corrosion test equipment supplier
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Applications
The Photovoltaic Acid Mist Test Chamber is a specialized device designed to simulate coastal environments with high salt fog concentrations, enabling the evaluation of photovoltaic modules' corrosion resistance. Its core function involves precisely controlling salt mist concentration, temperature, and humidity to accelerate material aging processes, thereby assessing product lifespan under harsh environmental conditions.
Standards
IEC 60068-2-42. IEC 60068-2-43. IEC 60068-2-60
GB/T 10125 Artificial Atmosphere Corrosion Tests - Salt Spray Test
ISO 9227 Corrosion Tests under Artificial Atmospheres - Salt Spray Test
ASTM B117 Laboratory Simulation of Salt Spray Environments (e.g., Marine or Humid Climates)
Features
1.Multi-Gas Synergy: Unlike standard salt spray boxes, this system allows you to introduce $H_2S$, $NO_2$, and $Cl_2$ simultaneously, providing a more realistic "industrial-marine" complex environment.
2.Large-Format Throughput: The internal architecture is optimized to hold six full-sized PV modules, ensuring your testing throughput meets industrial R&D demands.
3.High-Precision Flow Control: Equipped with advanced flowmeters (accuracy $<pm 1%$), giving you total confidence in the repeatability of gas concentration levels.
4.Corrosion-Resistant Build: The chamber interior is constructed from reinforced, high-temperature resistant plastics or specialized alloys to withstand acidic and saline exposure without self-corrosion.
5.Automated Cycle Management: You can program complex sequences of spraying, drying, and humidifying to simulate changing weather patterns over a single test period.
Parameters
| No. | Item | Specifications |
|---|---|---|
| 1 | Temperature Range | +10°C ~ +70°C |
| 2 | Humidity Range | 40% ~ 98% RH (adjustable) |
| 3 | Test Capacity | 6 pieces of 2m × 1.2m photovoltaic modules |
| 4 | Test Gases | Four gases: SiO₂ (Silicon Dioxide), H₂S (Hydrogen Sulfide), NO₂ (Nitrogen Dioxide), Cl₂ (Chlorine).Concentrations can be automatically adjusted according to standard requirements.Flow meter control accuracy: better than ±1% |
Test Procedures
1.Preparation
Sample Preparation: Clean the samples and secure them on the sample rack, ensuring they do not touch each other.
Solution Preparation: Prepare a 5% NaCl solution (pH 6.5-7.2) according to the standard.
2.Power-Up and Parameter Settings
Power Connection: Connect the power supply and turn on the main switch.
Parameter Settings:
Temperature: 35°C ± 2°C (salt spray phase) or 40–60°C (drying phase).
Humidity: 85% RH ±5%.
Test Cycle: Set the number of cycles and duration for spraying, drying, and humidification.
3. Test Operation
Start Test: After confirming parameters are correct, press the “Start” button.
Spray Inspection: Once temperature is reached, the spray system automatically activates. Observe spray uniformity.
Operational Monitoring:
Daily checks of temperature and spray volume.
Periodically replenish salt solution (recommended every 24 hours).
Monitor pressure gauge (0.7-1.5 kgf/cm²).
4. Test Conclusion
Shutdown Procedure: Turn off spray switch, allow temperature to drop below 40°C before disconnecting power.
Sample Removal: Retrieve specimens for corrosion assessment.
在线联系供应商
Other supplier products
 |
Enamel Boiling Water Resistance Evaluation Tester (for Enamel Boiling Water Resistance Tester) | Product Introduction: The enamel layer boiling water weight loss tester is designed according to QB/T 2590-2003 Appendix A, GBT99892-2015 /ISO 287... |
 |
Pipe coating scratch tester | The Pipe Coating Scratch Tester, also known as a paint and varnish scratch resistance tester or balanced scratch rod adhesion tester, is a precisio... |
 |
Catheter Vacuum Leak Tester | The Catheter Vacuum Leak Tester is a professional device used to detect leaks in medical catheter systems under vacuum conditions. Its primary purp... |
 |
Model Coin-cell Swelling System | The Model Coin-Cell Swelling System is designed for in-situ measurement of thickness and volume changes of coin-type lithium-ion cells during charg... |
 |

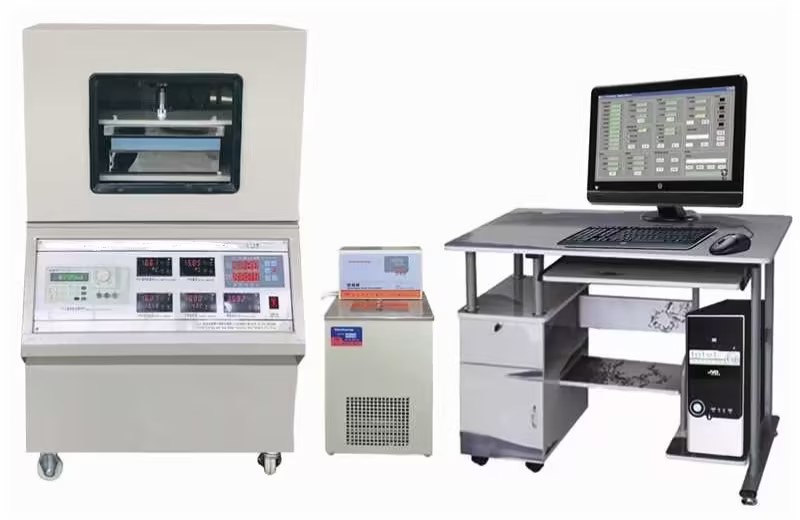

Fully automatic dual-plate guarded hot plate thermal conductivity tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Application This testeris suitable for testing the thermal conductivity of: Plastics, rub... |
