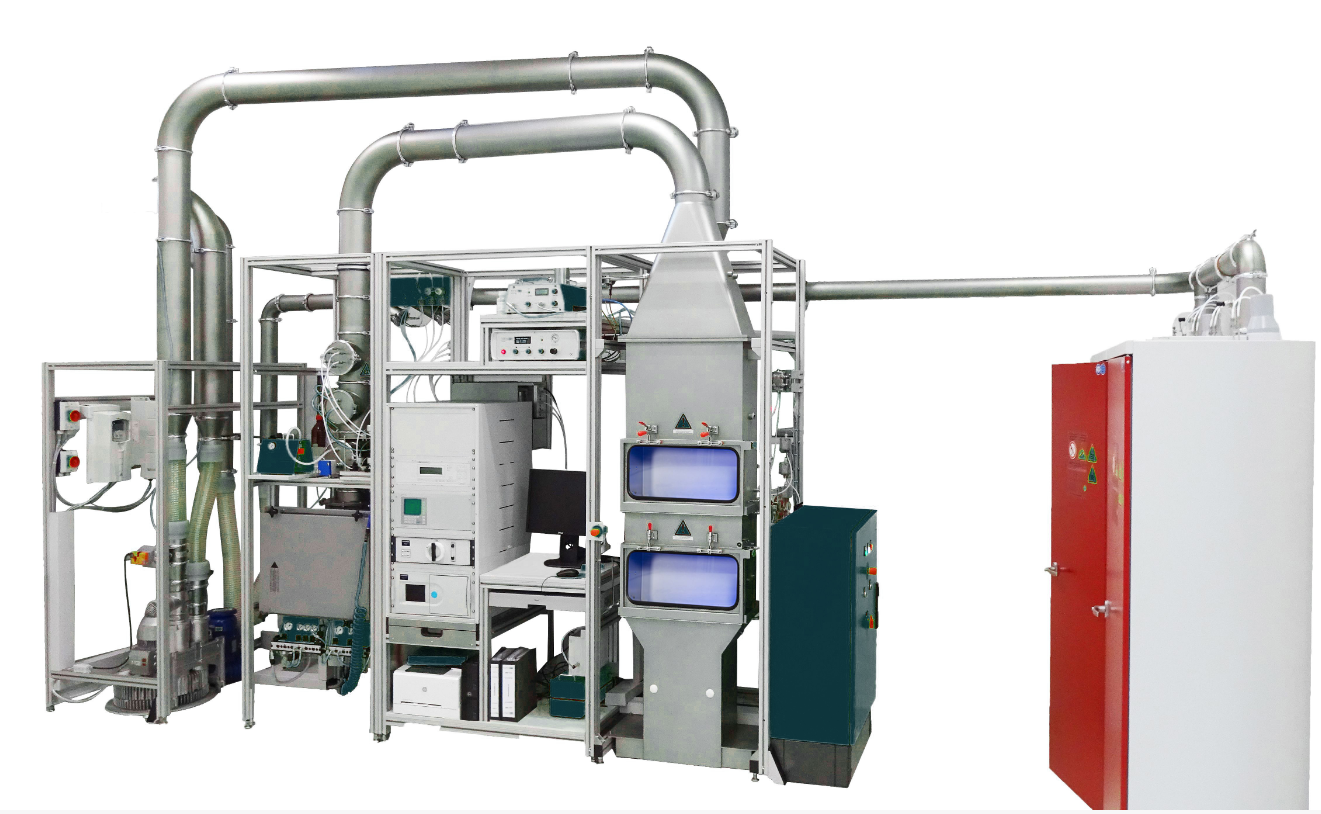

Automotive Air Filter Efficiency and Gas Adsorption Testing Equipment
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standards
GB/T 32085.1 — Automotive Air Conditioning Filters, Part 1: Dust Filtration Test
GB/T 32085.2 — Automotive Air Conditioning Filters, Part 2: Gas Filtration Test
DIN 71460-1 — Road Vehicles, Cabin Air Filters, Part 1: Particulate Filter Test
DIN 71460-2 — Road Vehicles, Cabin Air Filters, Part 2: Gas Filter Test
ISO/TS 11155-1 — Road Vehicles, In-Cabin Air Filters, Part 1: Dust Filtration Test
ISO 11155-2 — Road Vehicles, In-Cabin Air Filters, Part 2
ISO 10121-1 / ISO 10121-2 — General Methods for Air Filter Performance Testing
Features
standard compliant testing of filter media and filter elements
combined testing with particles and with gases
very flexible system configuration possible
Technical Data
| Parameter | Unit | Value |
|---|---|---|
| Test flow rate | m³/h | 70 … 700 |
| Test aerosol | – | DEHS, DOP, PAO, KCl, NaCl, etc. |
| Test gases | – | n-Butane 80 ppm, Toluene 80 ppm, Sulfur dioxide 30 ppm, Hydrogen sulfide 10 ppm |
| Measuring range, differential pressure | Pa | 0 … 1000 (± 2 %) |
| Test specimen dimensions | mm | max. 600 × 300 |
| Operating medium (gas/air) | – | Room air at standard test conditions (23°C ± 2 K; 50 % ± 2 % RH) |
| Power supply | – | 400 VAC / 3P / 75 A / 50 … 60 Hz and 3 × 230 VAC / 2P / 16 A / 60 Hz |
| Aerosol generation technology | – | Dust disperser SAG 410/L, Atomizer ATM 220. etc. |
| Aerosol conditioning technology | – | Electrostatic Aerosol Neutralizer EAN 581 |
| Aerosol measurement instruments | – | Aerosol spectrometer LAP 322 |
| Gas analysers | – | FID, NDIR |
| Sensors (others) | – | Temperature, relative humidity, absolute pressure |
| System dimensions (W × H × D) | mm | 3700 × 3000 × 3700 |
Principle of Operation
Defined airflow passes through the HEPA inlet filter and the test duct.
The test filter is installed in the adapter, ensuring easy insertion and observation.
Particle aerosols and specific gases are injected upstream of the filter.
Downstream, laser aerosol analyzers and gas analyzers measure particle concentrations and gas composition.
The system calculates fractional efficiency, dust loading, and adsorption/desorption curves.
The exhaust system ensures stable gas conditions and safe operation during filter replacement.
Software allows automated, repeatable testing and data recording/analysis.
Operating Instructions
Install the test filter using the dedicated adapter to ensure airtight sealing.
Set aerosol and gas flow rates and concentrations according to standards.
Turn on the exhaust system to maintain stable gas dosage and safe operation.
Calibrate sensors and gas analyzers before first use.
Use software-guided automated test procedures, or manual mode for research and calibration.
Maintain stable temperature and humidity to ensure accurate gas adsorption measurements.
Testing Procedure
Mount the filter in the adapter and confirm airtight sealing.
Set particle and gas flow rates/concentrations; start the exhaust system.
Start the automated test via software control.
Measure differential pressure, dust accumulation, and fractional efficiency.
Gas analyzers record downstream concentrations to generate adsorption/desorption curves.
After the test, move the filter to a safe area; the software generates a test report.
Export data for long-term analysis, statistics, and compliance verification.
