Strip evenness tester
Product Information:
Cotton yarn fiber strip analyzer is a high performance, high test efficiency of textile laboratory instrument, it is used to test the fine yarn, roving, sliver trunk density uneven, analysis of the cause of uneven, suitable for cotton, wool, hemp, chemical fiber short fiber pure spinning and blended yarn strip dry test.
Main parameters:
1. Capacitor detection slot: 4
2. Test range: 4tex —— 80k tex
3. Test speed: 8, 25, 50, 100, 200, 400, 800m/min
4. Test time: 10sec —— 20min can be set arbitrarily
5.CV%, U% value range: 0.2% —— 100%
6. Variation - Length curve: Cutting length 1 cm —— 1000m
7. Output three types of 12-speed defects at the same time:
Details -30%, -40%, -50%, -60%
Coarse section +35%, +50%, +70%, +100%
Cotton knot +140%, +200%, +280%, +400%
8. Spectral diagram: 170 channels, wavelength range 1cm-2000m
9. Linear density frequency distribution: -100% —— +100%, +100% —— +400%
10.DR% value: Output DR（1m, +5%）， DR（1m, -5%）， DR（20cm, +35%）， DR（20cm, -30%） four DR% values
11. Number of batch measurements: ≤20
12. Power supply: AC220V±10%50Hz±5Hz
13. Power consumption ≤400VA
在线联系供应商
Other supplier products
 |

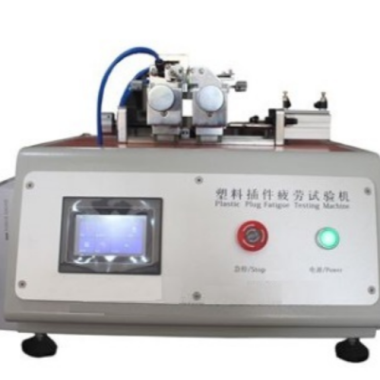

Bag plastic plug-in fatigue testing machine | Product Introduction: The machine operates under the technical standard QBT 5247-2018, ensuring that it meets industry requirements for testing. I... |
 |
Helmets Vertical SpacingInfrared - positioning Tester/ safety helmet vertical spacing tester / helmet fit measurement device | Purpose This measuring instrument is used to measure the vertical spacing and wearing height of safety helmets. Applicable Standard GB/T 2812-... |
 |

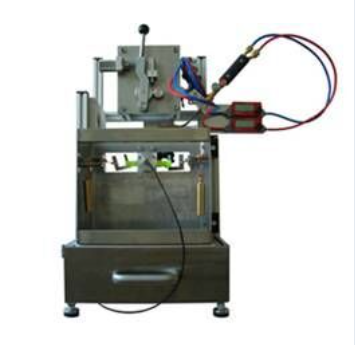

Resistance Tester for Molten Metal Droplet (Splash) Impact Performance/ | Product Information: This resistance tester for molten metal droplet (splash) impact performance is developed in accordance with testing standards... |
 |
