Battery Powder Compaction Density Evaluation System
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Application
(1) Measurement of tapped density and compaction characteristics of lithium-ion, sodium-ion, and solid-state battery powders.
(2) Evaluation of pharmaceutical excipients and active pharmaceutical ingredients (APIs) for quality control and formulation studies.
(3) Testing of 3D printing powders, including metal, ceramic, and polymer powders, for additive manufacturing applications.
(4) Determination of powder properties for abrasives, catalysts, and food additives.
(5) Calculation of Hausner Ratio and Carr Index for flowability and packing behavior analysis.
(6) R&D and production-scale sample testing using variable cell volumes (1–500 cm³).
(7) Environmental testing under controlled temperature (-10°C to 80°C) and humidity (5–95% RH) conditions.
(8) Automated data acquisition and real-time plotting of tapped density vs. tap count for process optimization.
Standards
(1) ISO 3953 – Determination of tapped density of powders.
(2) ASTM B527 – Powder density measurement and compaction testing.
(3) CE/UL – Laboratory equipment safety compliance.
(4) USP <616> – Powder density testing methods for pharmaceuticals.
(5) 21 CFR Part 11 – Electronic records and data integrity compliance for FDA-regulated applications.
Parameters
| Parameter | Specification |
|---|---|
| Tapping Range | 1–3000 taps (adjustable speed: 10–60 taps/min) |
| Density Measurement | 0.1–5.0 g/cm³ (±0.005 g/cm³ accuracy) |
| Pressure Application | 0–370 MPa (programmable ramp rates) |
| Temperature Control | -10°C to 80°C (±0.2°C stability) |
| Humidity Tolerance | 5–95% RH (non-condensing) |
| Display/Interface | 10.1" touchscreen with multi-language GUI |
| Power Consumption | 600 W (110–240 V AC, 50/60 Hz) |
| Dimensions (W×D×H) | 500 × 600 × 800 mm |
Accessories
(1) Main Unit: Powder Tapped Density Analyzer with integrated safety enclosure.
(2) Software Package: Compliance-ready SPC software with FDA 21 CFR Part 11 modules.
(3) Testing Kits: Set of three stainless-steel density cells (10 cm³, 50 cm³, 250 cm³).
(4) Calibration Weights: 100 g and 500 g with certificates.
(5) Dust Management: HEPA filter unit and anti-static brush.
(6) User Documentation: Multilingual quick-start guide and maintenance manual.
在线联系供应商
Other supplier products
 |
Automotive Seat Headrest and Backrest Static Strength Testing Machine Manufacturer Factory Direct | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Features Full-range load capability without gear segmentation; adjustable lo... |
 |

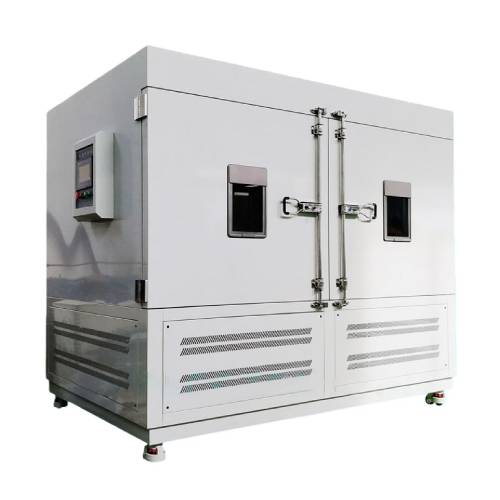

PV Light Induced Degradation (LID) Testing Chamber Manufacturer | IEC 61215 Compliant | Get a quote： Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards IEC 61215: Terrestrial photovoltaic (PV) modules—Design qual... |
 |
