Wet penetration tester EN ISO 22610 EN 14126
Wet penetration tester Application:
Protective Clothing Tester Wet Microorganism Bacterial Penetration Resistance Tester Apparatus: used to measure the penetration performance of bacteria in the liquid when the material is subjected to mechanical friction (the shielding performance of the liquid against bacterial penetration by the mechanical friction chamber)
Wet penetration tester Standards:
EN ISO 22610. EN 14126. Annex A, YY/T 0506.6
Wet penetration tester Feature:
Automatic stop as preset counters.
High stable testing performance from precise structure design.
Stainless steel body provides high corrosion resistant performance.
Adjustable loading pressure.
Wet penetration tester Specifications:
Rotary speed: (60 ± 1)rpm
The test refers to the pressure on the material: (3±0.02)N
Outward wheel speed: 5~6 rpm
Timer set range: 0~99.99min
The inner and outer ring weights: (800±1)g
Wet penetration tester Principle:
Place the specimen on AGAR plate. A piece of the same specification is placed on the specimen. Cover with a high density polyethylene film about 10 microns thick. The three layers of material using the cone steel ring (the test material below, the mushroom center, high density polyethylene film on top) are stuck together. Place the ring on the AGAR plate on the turntable. The experiment means that the material can be applied to the material in a way that can be moved on the surface of the whole plate, so that the material is subjected to the combination of pressure and friction.
This model can simulate the force condition of the barrier material in the actual application and the microorganism penetration under the wet conditions.
The microbes on the microbial migrate to the surface of the AGAR plate after penetrating the experimental material. Through the culture and colony count of AGAR plate, the penetration performance of the test material can be quantitatively evaluated.
Wet penetration tester Parameters:
| Item | Detail |
| Rotary speed | 60rpm |
| Pressure from finger | 3N±0.02N |
| Excentric speed | 5-6rpm |
| Time | 0-99.99min |
| Loading weight | 800g |
| Power supply | 220V 50Hz |
| Dimension | 550mm×300mm×450mm 21.65inch×11.81inch×17.72inch |
| Net weight | 27kg 59.52lb |
在线联系供应商
Other supplier products
 |

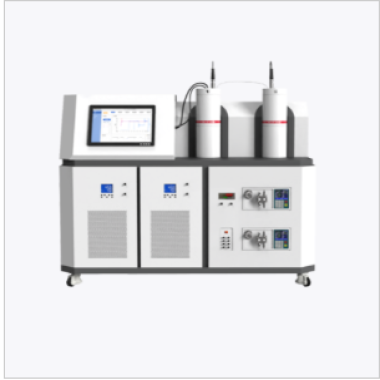

Fully Automatic Continuous Flow Reaction Calorimeter/ Fully Automated Reaction Calorimeter / Continuous Flow Reaction Calorimeter | Product Features： 1. Using the coefficient calibration method and flow - regulation calorimetry, it can quickly obtain the reaction heat release a... |
 |
Wire Torsion and Winding Tester | Product Introduction: Metal wire twisting and winding machine is widely used in aerospace, metal material processing, tire manufacturing and other... |
 |
Pilling assessment viewer | Universal pilling pilling viewer/Pilling Pilling Rating tester By comparing the sample to the standard card under the specified light source to obt... |
 |

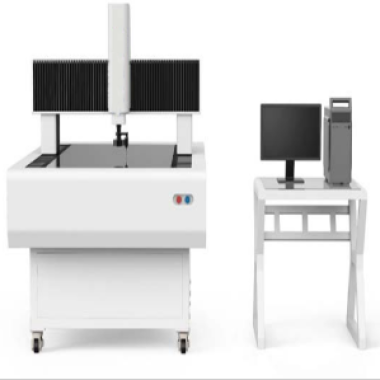

Gantry Vision Measuring Machine | Product advantages: Longmen Automatic image measuring instrument is specially designed for large size measurement, with a maximum stroke of 3000X2... |
 |

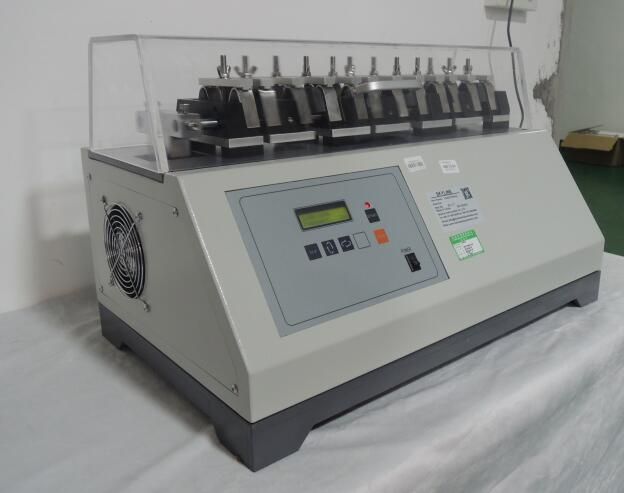

Leather Vamp Flexing Extensibility Testing Machine | Introduction: Vamp Flexing Tester is used to determine the propensity for materials to crack or otherwise fail at flexing creases, but can also be... |
