Heel Impact Tester
Heel Impact Tester is used to determine the impact strength of heels of ladies’shoes.
Application:
This Heel Impact Tester is used to determine the impact strength of heels of ladies’ shoes, and the result provides an assessment of the liability to failure under the occasional heavy blows received during wear.
Feature：
Its principle is, a heel, clamped with the tip uppermost and the stem approximately vertical, is subjected repeatedly to measured blows from a pendulum striker , the energy of the blows increasing successively until the heel fails. While the method is applicable to all types of high heels ,of whatever construction, it is particularly useful for injection molded plastics heels which incorporate a steel dowel reinforcement, giving information on the suitability of the dowel’s hardness or softness.
parameters：
Capacity: 0~18.3J(13.5FT-LB) minimum indication
Swing arm: φ25mm
Energy of pendulum bob when swing arm in horizontal: 17.3N-m(12.7ft-lb)
Impact hammer: φ108mm, 49.2mm(D)
Distance between hammer circle center and axle center: 432mm
Impact blade: 25x6x35mm(W×D×L),3mm(R)
Specimen seat adjustable range: 0~25mm(H), angle 1~45°
Volume: 63x40x105cm
Weight: 101kg
Standard:
BS-5131-4.8,
ISO 19953,
SATRA TM20
在线联系供应商
Other supplier products
 |
Geosynthetic direct shear drawing friction tester | Meet the standard: Direct shear test :IS0 12957.1,GB/T 17635.1-1998,JTG E50 T1129,SL/T 235, etc Pull test :JTG E50 T1130,SL/T 235, etc. Instru... |
 |
Textile formaldehyde content tester | Introduction In China, the national mandatory standard "national textile products basic safety technical specifications" GB18401-2003. with effect... |
 |

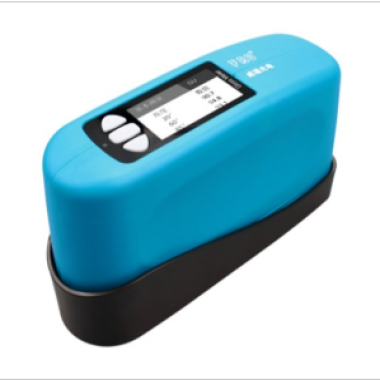

Glossiness Measuring Instrument | Standard The SpectroColor Pro S Series Gloss Meter adheres to stringent automotive interior quality control standards, includingISO 2813. ASTM D52... |
 |
Electrode tortuosity tester & diaphragm ion conductivity tester | Standard Electrode Tortuosity Analyzer: ASTM E1970-21 (Electrochemical Impedance Spectroscopy) ISO 18516 (Conductive Coatings – Resistivit... |
 |

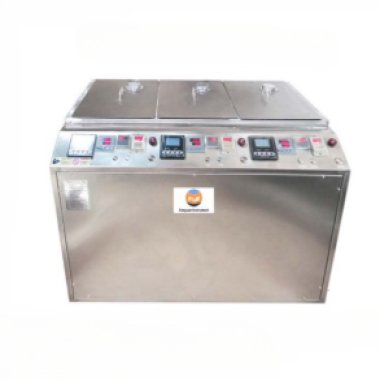

Geosynthetic acid and alkali aging tester | Scope of application: Test method for acid-resistant lye properties of various geosynthetic materials; The machine has stirring function, the solu... |
