UV Accelerated Weathering Tester丨UV Accelerated Weathering Chamber
Standard
ASTM D4329、ASTM D4587、ASTM D4799 、ASTM D5208、ASTM G151、ASTM G154 、EN 927-6、EN 1297 、EN 1898 FIBC、EN 12224 、EN 13523-10 、ISO 4892-1、ISO 4892-3、ISO 11507、ISO 11895 、ISO 11997-2 、SAE J2020、EN 1062-4
Product Advantages
UV aging chamber innovative design, compared with other UV fluorescent aging test chamber, to achieve the high performance with ease of use, accuracy and safety of a higher standard, the verification performance in line with or even more than other brands. Multi-language touch screen interface, through the Ethernet connection for data collection, high security, optional recirculation spray device. More other unique user easy to operate using the features
Product Features
1, 8 pieces of 40-watt UV fluorescent tubes
2, blackboard temperature (BPT) control
3, safety protection device: open the door after the dual protection of hardware and software; low water level protection; over-temperature protection
4, in line with CE standards and UL and CSA certification
5, the sample rack
6, touch screen display
7, irradiance calibration safety interface
8, easy to operate the sample fixed ring
Technical Parameters
1. The radiation uniformity: covering the entire surface of the sample 4%
2. Irradiation: Minimum: 0.35 W / m2 (UVA, UVB) Maximum: 1.55 W / m2 (UVA), 1.23 W / m2 (UVB)
3. Blackboard Temperature Range: UV Stage - BPT 35-80 ° C (95-176 ° F) Condensing Stage - BPT 35-60 ° C (95-140 ° F)
4. Sample capacity: 48 + BPT on 24 sample clamps
5. Weight: About 140KG (310LB), depending on the choice of accessories
6. Power: 120VAC (± 10%), 1Ph. 2Wire (1 / N / PE), 50/60 Hz, 12A230 VAC 2 / PE), 50/60 Hz, 8A
7, spray water pressure: 25-40 psi (1.7-2.7bar), purity: <1 ppm dissolved solids, silicon: <0.1 ppm, conductivity: <5 us / cm or 200 KΩ or reference test method
8, condensate water requirements
Pressure: 2-60 psi (0.1-4.1 bra)
Purity: Recommended deionized water, but not required.
Accessories
1, circulating water spray
2,12 standard nozzles
3, hand-held radiation calibrator
4, through the Ethernet data acquisition procedures
5, superimposed kit
6, radiation control (340 nm, 313 nm, 351 nm)
7, nozzle can be customized for the user
Send product request
Other supplier products
 |
Rupture strength tester | Standard IEC 61730-2: Photovoltaic (PV) Module Safety Qualification – Requirements for Testing UL 61730: Safety Standard for Photovoltaic M... |
 |
Standard pacifier safety tester | Overview In the infant care industry, bottle quality directly impacts infant health. The NPNZ-01 Baby Bottle Mechanical Performance Tester is spec... |
 |
Safety Harness Test Rubber Dummy | Application Performance testing of fall protection safety harness systems Performance evaluation of harness systems for guardrail work Verificat... |
 |
Taber Abrasion Resistance Tester | Whats/App: +86 156 1874 6768 Web: standard-groups.com Taber Abrasion Tester is also referred to as Taber abraser or Taber abrader, which is used ... |
 |
Coating thickness gauge/film thickness gauge | Standard Coating Thickness Gauge complies with international standards includingASTM B499,ASTM D1400,ISO 2178,ISO 2360, andGB/T 4956, ensuring rel... |
Same products
|
|
UV Accelerated Weathering Tester丨UV Accelerated Weathering Chamber | Seller: Standard International Group (HK) Limited | Standard ASTM D4329、ASTM D4587、ASTM D4799 、ASTM D5208、ASTM G151、ASTM G154 、EN 927-6、EN 1297 、EN ... |
 |
UV Condensation Aging Test Chamber丨UV Condensation Aging Tester | Seller: Standard International Group (HK) Limited | Standard ASTM G154.ISO 4892-3.JIS K 7350. andSAE J2020for UV exposure testing. IEC 60068-2-78fo... |
 |

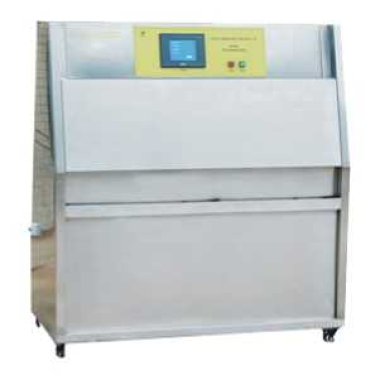

UV Aging Test Chamber丨UV Aging Test Mechine | Seller: Standard International Group (HK) Limited | The UV aging test chamber is suitable for all kinds of geo-synthetics, such as light resistance, ... |
 |

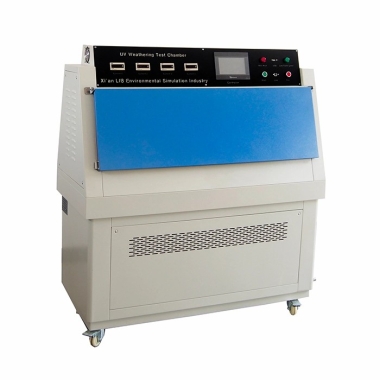

UV Light Degradation Chamber丨UV Light Degradation Tester | Seller: Standard International Group (HK) Limited | Features and Benefits 1.TheUVlamps can be selected in different wavelength ranges, including U... |
 |

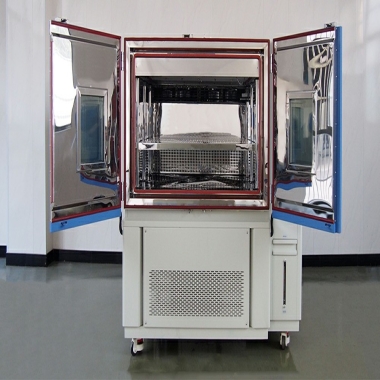

Weatherometer Laboratory Testing Equipment(UV) | Seller: Standard International Group (HK) Limited | Features and Benefits 1. UVA-340. UVB-313 and other UV lamps, a single power of 40 watts, can ... |
