UV Condensation Aging Test Chamber丨UV Condensation Aging Tester
Whats/App: +86 156 1874 6768
Web: standard-groups.com
Standard
ASTM G154.ISO 4892-3.JIS K 7350. andSAE J2020for UV exposure testing.
IEC 60068-2-78for condensation and humidity resistance evaluations.
Product Advantages
Precision Environmental Control
Independent regulation of UV intensity (0.1–1.5 W/m²), temperature (RT+10°C to 70°C), and condensation cycles for accurate simulation of natural weathering.
Programmable cycles combine UV exposure and condensation phases to replicate years of outdoor aging in weeks.
Energy-Efficient Performance
Dual UV lamp system reduces energy consumption by 30% compared to traditional models.
Self-contained water recycling system minimizes resource waste.
Durable & Low-Maintenance Design
Stainless steel interior resists corrosion from prolonged humidity exposure.
Easy-access water tank and replaceable UV lamps (lifespan ≥1.600 hours) simplify maintenance.
User-Friendly Operation
7-inch touchscreen interface with multi-language support (English/Spanish/Chinese).
USB data port for real-time test logging and analysis.
Product Features
Dual-Mode Testing: Cycle between UV irradiation (simulating sunlight) and condensation (mimicking dew/rain) automatically.
Fluorescent UV Lamps: UVA-340 or UVB-313 options to match specific wavelength requirements.
High-Humidity System: Heated water tank generates vapor for 100% RH condensation control.
Sample Observation Window: Tempered glass door with LED lighting for in-process monitoring.
Safety Protection: Over-temperature alarm, water shortage alert, and emergency stop function.
Technical Parameters
| Parameter | Specification |
|---|---|
| Temperature Range | UV Mode: RT+10°C to 70°C / Condensation Mode: RT+10°C to 50°C |
| Humidity Range | 45%–95% RH (condensation phase) |
| UV Wavelength | UVA-340nm (295–360nm) or UVB-313nm (280–315nm) |
| UV Lamp Power | 40W × 2 (user-replaceable) |
| Cycle Timer | 1–9999 hours (adjustable) |
| Sample Capacity | 48 standard specimens (150×70mm) |
| Power Supply | AC 220V/50Hz or 110V/60Hz (customizable) |
| Chamber Dimensions | 1100mm (L) × 500mm (W) × 1350mm (H) |
| Weight | 180kg (net) |
Accessories
Adjustable Sample Rack: Holds up to 48 specimens (supports ASTM D4329 standards).
Spare UV Lamps: 2 additional lamps for uninterrupted testing.
Distilled Water Kit: 10L tank with anti-scale filter for condensation purity.
Operation Manual: Multilingual guide with maintenance checklists.
USB Data Cable: For direct export of test reports to PC.
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
Send product request
Other supplier products
 |
Carpet tuft length measuring instrument | Standard BS 4223:1989 (British Standard): Specifies methods for determining the pile length of cut-pile carpets, ensuring consistency in quality... |
 |

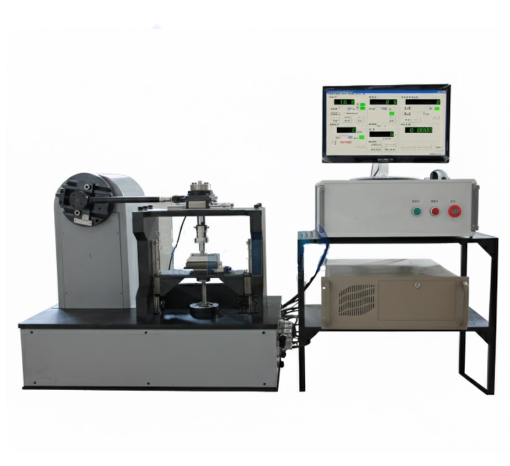

Precision Reciprocating Friction and Wear Tester Type 02 | Whats/App: +86 156 1874 6768 Web: standard-groups.com Standards ASTM G99 – Standard Test Method for Wear Testing ASTM G133 – High-T... |
 |
