High amplitude vibration screen, circular vibrating screen for mining

High amplitude vibration screen, circular vibrating screen for mining

Applications of High amplitude vibration screen, circular vibrating screen for mining:

  1. High amplitude vibration screen, circular vibrating screen for mining is to solve the wet viscous material depth screening equipment, especially for less than 10mm wet sticky coal screening.

  1. High amplitude vibration screen, circular vibrating screen for mining is mainly used for coal (particle size grading), power (CFB boiler fine particle screening), metallurgy (particle size grading) and other industries.

Overview of High amplitude vibration screen, circular vibrating screen for mining:

  1. High amplitude vibration screen, circular vibrating screen for mining is composed of sealing cover, screen box, sieve plate, dust removing mouth, exciter, soft connecting device and damping spring.

  1. High amplitude vibration screen, circular vibrating screen for mining is the use of large amplitude, large vibration intensity, low vibration frequency and self-cleaning screen surface to complete wet viscous material screening process.

  1. High amplitude vibration screen, circular vibrating screen for mining is not an integral part of the vibration, the screen machine side panels, roof, base is a fixed part, only the sieve plate and exciter assembly to participate in vibration.

  1. High amplitude vibration screen, circular vibrating screen for mining is a special steel bar and frame composition, the bars were arranged vertically, the whole screen in the vibration, at the same time each bar there is also an active gap, and do secondary vibration, to maximize the elimination of wet sticky raw coal on the screen of the bonding problem.

Features of High amplitude vibration screen, circular vibrating screen for mining:

  1. High amplitude vibration screen, circular vibrating screen for mining used in coal-fired power plants, are generally made of closed structure, so that dust cannot be leaked, to respond to environmental requirements.

  1. High amplitude vibration screen, circular vibrating screen for mining with the sieve body without vibration and sieve plate vibration process characteristics, with higher amplitude, lower dynamic load advantages.

  1. High amplitude vibration screen, circular vibrating screen for mining with fewer moving parts, vibration quality is small, so its power can be reduced to a minimum. Compared with the traditional screen machine, can reduce the power more than doubled.

  1. High amplitude vibration screen, circular vibrating screen for mining is generally used 1-6 sets of motor drive, each motor starting time interval of 6-8 seconds. Sieve machine without material more conducive to observation and maintenance.

  1. High amplitude vibration screen, circular vibrating screen for mining with modular, standardized components, so that the overall rapid replacement, greatly reducing on-line maintenance time.

Technical parameter table of High amplitude vibration screen, circular vibrating screen for mining:

Model

Sieve mesh(mm)

Power KW

Feeding size(mm)

Capacity t/h

Size (mm)

GFS-X-600

30-50

1*11

<300

600

2910*3464*2050

GFS-X-800

30-50

1*11

<300

800

2910*3664*2050

GFS-X-1000

30-50

2*11

<300

1000

4318*3664*3200

GFS-X-1500

30-50

2*11

<300

1500

4318*3864*3200

GFS-X-2000

30-50

3*11

<300

2000

5410*4085*4050

GFS-X-2500

30-50

3*11

<300

2500

5410*4085*4050


Send product request

To: Henan Winner Vibrating Equipment Co., Ltd.
Your E-mail:
Message text:


Send to other suppliers

Other supplier products

Stock and stone crushing machine for waste recycling
Stock and stone crushing machine for waste recycling Introduction Overview of Stock and stone crushing machine for waste recycling: Stock and stone crushing machine for waste recycling is the crusher...
Rotary vibrating sieve for Chemical industry
Rotary vibrating sieve for Chemical industry Rotary vibrating sieve for Chemical industry Overview of Rotary vibrating sieve for Chemical industry: Rotary vibrating sieve for Chemical industr...
China crawler mobile crushing plant for city infrastructure
China crawler mobile crushing plant for city infrastructure Introduction Overview of China crawler mobile crushing plant for city infrastructure: China crawler mobile crushing plant for city infrastructure ...
Mining two layer double frequency vibrating screening machine for crushing line
Mining two layer double frequency vibrating screening machine for crushing line Mining two layer double frequency vibrating screening machine for crushing lineProduct overview of Mining two layer double frequency vibrating scre...
Construction waste recycling plant with Brick making
Construction waste recycling plant with Brick making Construction waste recycling plant with Brick making Construction waste recycling plant with Brick making  and quick to achieve the construction w...
All supplier products

Same products

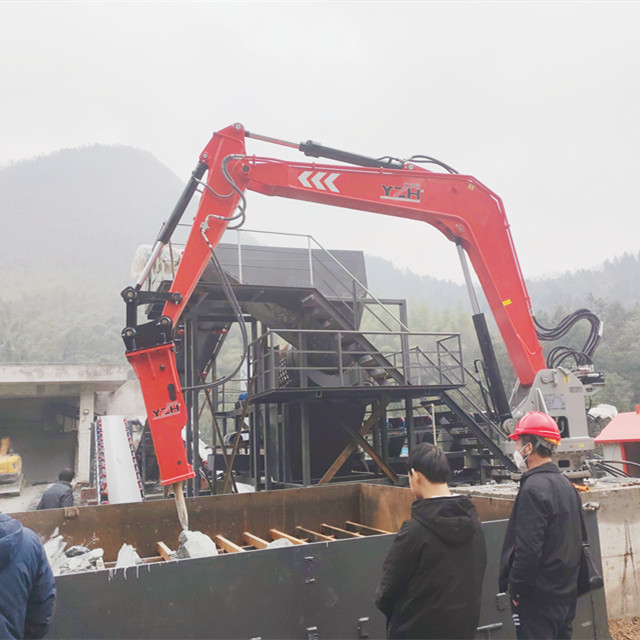

YZH stationary hydraulic rock breaker
