Carpet Dimensional Stability Tester

Produced by: Qinsun Instruments Co., LTD

All supplier products

Standard

ASTM D5417(Standard Test Method for Assessing Carpet Dimensional Stability)
ISO 2551(Textile Floor Coverings - Determination of Dimensional Changes After Exposure to Heat and Humidity)
BS 4682

Unmatched Precision
- High-resolution laser sensors (±0.01mm accuracy) capture even minute dimensional changes, critical for delicate wool, synthetic, and blended carpets.
Adaptive Testing Environment
- Programmable climate control (temperature: 10–60°C, humidity: 20–95% RH) simulates extreme real-world conditions, from arid deserts to humid tropics.
User-Centric Design
- 7-inch touchscreen interface with multilingual support (English, Spanish, Arabic, Japanese) and real-time data visualization for intuitive operation.
Rugged Durability
- Stainless steel test chamber and corrosion-resistant components ensure long-term reliability in industrial settings.
Cost-Efficient Operation
- Modular design allows easy replacement of consumables (e.g., humidity sensors, clamps) and minimizes maintenance costs.

Multi-Mode Testing:
- Supportsheat aging,humidity exposure, andmechanical stresstests to replicate washing, steam cleaning, and heavy foot traffic.
- Automatic cycle counter with pause/resume functionality for uninterrupted workflows.
Safety & Compliance:
- Over-temperature protection, emergency stop button, and CE/UL certification for safe laboratory use.
Data Management:
- Onboard memory stores 10,000+ test results, exportable via USB/Bluetooth in CSV/PDF formats. Compatible with LIMS (Laboratory Information Management Systems).
Universal Sample Compatibility:
- Adjustable clamp system accommodates carpets up to 1m x 1m in size, including shag, loop pile, and cut-pile designs.

Parameter	Specification
Dimensional Measurement Range	±50mm (X/Y axis)
Temperature Range	10–60°C (±0.5°C accuracy)
Humidity Range	20–95% RH (±2% RH accuracy)
Test Cycle Duration	1–999 hours (adjustable)
Sample Size	Up to 1m x 1m
Power Supply	100–240V AC, 50/60Hz, 300W
Dimensions (L×W×H)	1.2×1.2×2.0 m
Weight	150 kg
Operating Environment	15–35°C, ≤85% RH (non-condensing)

	Cleanliness Analysis System	Production： The cleanliness analysis system fully complies with the requirements of standards such as VDA19.1 - 2015. ISO16232. ISO4406. ISO4407. ...

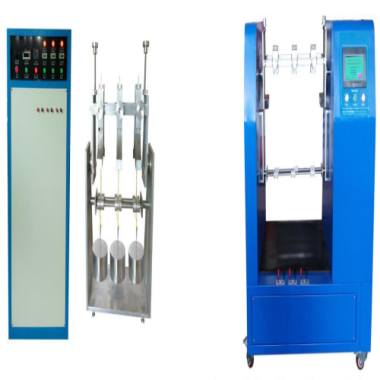

	Automotive wire cyclic bending testing machine	StandardThis testing machine aligns with global automotive industry standards for wire harness reliability, includingISO 6722(Road vehicles –...
