Car seat belt locking performance tester

Applicable standards:

Automotive seat belt locking performance tester mainly meets the following national or industry standards:

GB 14166-2013Seat belts, restraint systems, Child restraint Systems and ISOFIX Child Restraint Systems for Motor Vehicle Occupants

GB 27887-2011Restraint System for Child Occupants of Motor Vehicles

Main parameters:

Control system:

PLC control system is usually used to realize automatic control and data processing.

Operation interface:

It is equipped with a color touch screen and supports switching between Chinese and English for easy operation.

Emergency lock test parameters:

After installation, the winder can reach a speed of 2.94m/s within 50ms to simulate the locking function in emergency situations.

Angle adjustment:

The installation Angle can be adjusted, such as the winding shaft to the horizontal plane of 45°, 90°, 135° and 180° to adapt to different test requirements.

Vehicle acceleration adjustment range:

The acceleration adjustment range is usually 0.2——1.5g （can be set） to meet the needs of different test conditions.

Acceleration adjustment step:

The acceleration adjustment step is usually less than or equal to 0.05g to ensure the accuracy of the test.

Maximum displacement of car feeling:

The maximum displacement of the car is usually 100mm, which is used to simulate the displacement of the vehicle during an emergency stop or collision.

Inductive acceleration adjustment range:

The inductive acceleration adjustment range is not less than 0.2——2.5g to adapt to the test needs of different seat belt materials.

Acceleration measurement accuracy:

The measurement accuracy of acceleration is usually less than 0.01g to ensure the accuracy of the test results.

Repeatability deviation of acceleration:

The repeatability deviation of acceleration is usually less than or equal to ±0.01g to ensure the stability and reliability of the test results.

Maximum overshoot of acceleration:

The maximum overshoot of the acceleration is usually less than 10% of the set acceleration value to ensure the accuracy of the test.

Seatbelt locking distance measurement accuracy:

Seat belt lock distance measurement accuracy is usually less than or equal to ±0.01mm, to ensure the accuracy of the test results.

Other supplier products

	Seat Belt Abrasion Tester-QINSUN	Standard： ISO 10555(Seat Belt Assemblies - Test Methods for Abrasion Resistance) ECE R16(Uniform Provisions Concerning the Approval of Safety B...
	Civil Aviation Aircraft Interior Non-metallic Materials Flame Retardant Property Tester	Compliance Standards FAR25.853 (FAA Airworthiness Standards for Transport Category Aircraft) CCAR-25-R4.853 (Chinese Civil Aviation Regulations A...
	Single chip liquid crystal touch impact testing machine	Product Introduction: Liquid crystal touch impact testing machine is mainly used for hard plastics （including sheet, pipe, plastic profile）， reinf...
	Fabric Static Stress Resistance Tester	Product Name Fabric Static Stress Resistance Tester Applicable Standards DIN 53860 - 1: Inspection of textiles - Inspection of planar fabric sac...

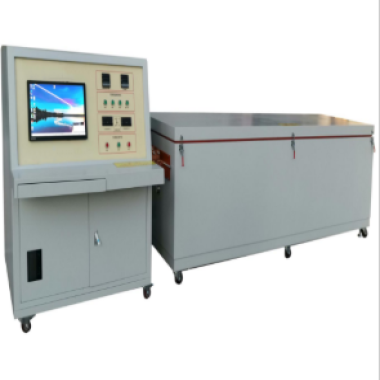

	AC/DC Current - Carrying Temperature - Rise and Voltage - Drop Test System for Automotive Wires-QINSUN	Application Scope: 1. Record the temperature change of conductors in connectors under a certain current. 2. Record the magnitude of the current...
