Taber Abrasion Resistance Tester
Taber Abrasion Tester is also referred to as Taber abraser or Taber abrader, which is used to evaluate the wear resistance of materials or finished products.
The machine features a rotary platform, allowing two abrading wheels to slide against the test piece at a constant speed.
This single platform Taber Abrasion Tester owns an elaborate design and adopts a precise drive system and a transmission device to ensure it runs smoothly, reliably and with low noise during use, providing a reliable and comfortable testing experience.
It is widely applicable to the determination of abrasion resistance of the leather, fabrics, textiles, coatings, paint, glass, ceramics, paper, high-pressure decorative laminates, natural rubbers, plastics, etc.
Test Principle of Taber Abrasion Tester
A test piece is mounted to the round turnplate (as a specimen holder) with rotation function under control. Two abrasive wheels attached to the free ends of pivoted arms rub against the specimen under the given downward pressure. Driven by the turntable, one abrading wheel grinds the test piece inward toward the center, and the other one rubs the test piece outward toward the periphery. Abrasion resistance is assessed by an average rate of loss in mass / volume of the specimen or the number of cycles to the end-point.
Standards：
ISO Standards: ISO 9352. ISO 5470. ISO 7784
ASTM Standards: ASTM D1044. ASTM D3884. ASTM D4060
Chinese Standards: GB/T 5137.1. QB/T 2726
German Standard: DIN 53109
ASTM D3884, ASTM D1175, ASTM D1044, ASTM D4060, ASTM D4685,
TAPPI T476, ISO 9352, ISO 5470-1,
JIS K7204, JIS A1453, JIS K6902, JIS L1096, JIS K6964, DIN 52347, DIN 53109,
DIN 53754, DIN 53799, SATRA TM163
Product Advantages
Versatile Applications: Suitable for testing abrasion resistance of fabrics, cardboard, coatings, leather, tiles, glass, natural rubber, and more.
User-Friendly Operation: Intuitive LCD control panel with real-time speed display and adjustable speed settings (30–75 RPM).
Precision Compliance: Meets ASTM-standard 125g pressure requirements via adjustable counterweights, with optional loads up to 1250g.
Customizable Testing: Preset wear cycles (1–999.999 revolutions) and vacuum suction height adjustment for debris removal, enhancing test accuracy.
Durability & Performance: Branded silent motor ensures low-noise operation and long-term reliability.
Consistent Results: Pre-grinding standardization of abrasion wheels guarantees high repeatability in test outcomes.
Product Features
Digital Control Interface: LCD screen displays real-time speed (30–75 RPM adjustable) and allows manual or programmed cycle settings.
Advanced Balance System: Rear arm equipped with interchangeable counterweights (250g, 500g, 750g, 1000g) for precise pressure control, including 125g ASTM compliance.
Adjustable Vacuum System: Height-adjustable suction port adapts to materials of varying thicknesses, efficiently removing debris during testing.
Modular Abrasion Wheels: Replaceable wheels (e.g., CS-10. H-18) and sandpaper discs (S-11) cater to diverse material testing needs.
Sample Preparation Kit: Includes sample stickers (S-36) and a diamond wheel polisher for pre-test surface conditioning.
Technical Parameters
| Parameter | Specification |
|---|---|
| Rotational Speed | Adjustable: 30–75 RPM (digital control) |
| Sample Diameter | 100 mm |
| Test Platform Diameter | 113 mm |
| Cycle Range | 1–999.999 revolutions (presettable) |
| Air Pressure | 250g (standard) |
| Weight Options | 250g, 500g, 750g, 1000g (included); 125g (optional) |
| Wheel Pressure Range | 125g, 250g, 500g, 750g, 1000g, 1250g |
| Vacuum Arm Adjustment | Height-adjustable |
| Power Supply | 220V, 50Hz |
| Dimensions | 220 (W) × 380 (D) × 300 (H) mm |
| Net Weight |
20 kg |
Send product request
Other supplier products
 |

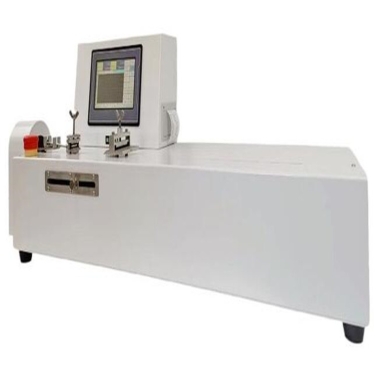

Horizontal paper tensile strength testing machine | Product Introduction: G103C horizontal tensile strength tester adopts paper tensile strength software, which is a paper resistance tester for meas... |
 |

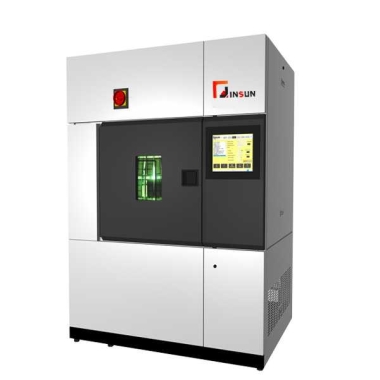

Xenon Test Chamber/weather ometer | Introduction Weather-Ometer and Fade-Ometer tester adopts water-cooled xenon lamp. This instrument using argon arc lamp simulation control ideal n... |
 |
Carbon Black Dispersion Tester | Scope of application: DW1431 plastic carbon black dispersion measurement system is based on a professional image acquisition system and correspond... |
 |

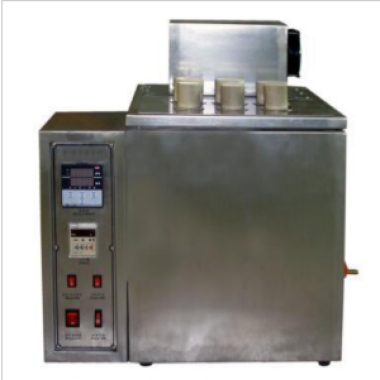

Automotive Wires Liquid Resistance Tester-QINSUN | Test Standards: Requirements for liquid resistance tests of automotive wires in ISO 6722. SAE J1128. QC/T 730. and JASOD611 Main Parameters: T... |
 |

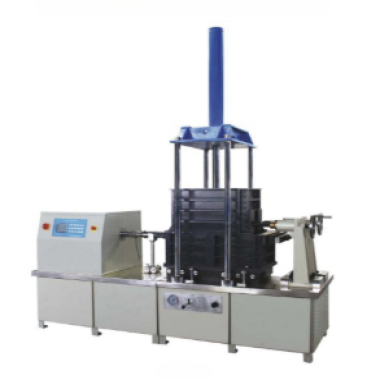

Geosynthetic direct shear drawing friction tester | The friction characteristics of the interface of sand/geotextile were determined by testing the contact surface of standard sand/geotextile. This i... |
