Car wire heat resistant water (salt water) testing machine
Scope of application:
It is suitable for long-term (more than 14 days) DC voltage and salt water resistance test of automobile wire and locomotive wire, which meets ISO6722. SAEJ 1128. QCT 730. JASOD611. EN50305. EN50395 and other test standards.
Main parameters:
1. Power supply: 380V 50Hz
2. heating power: 6000W(salt water resistance type)
3. digital display temperature control: room temperature ——99.9℃
4. intelligent PID control, accuracy: ±0.2℃
Thermocouple PT100 anticorrosive type,
5. anticorrosive pottery material: ∮700 X420mm
6. PVC plate is used to close the fence around the pottery cylinder
7. layman size: 800×800X600(mm)
8. Motor mixing method, mixing rod is non-metallic material
9. equipped with water level ball valve (anti-corrosion material)， can control the height of the water level
10. equipped with automatic water pump, can maintain a certain test water level
11. optional: 48V DC power supply
12. Optional: High voltage DC stability tester JN-DC-50305: DC voltage: DC0——5KV, can be recorded
The leakage current in the test process, and form EXECL report
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
Send product request
Other supplier products
 |

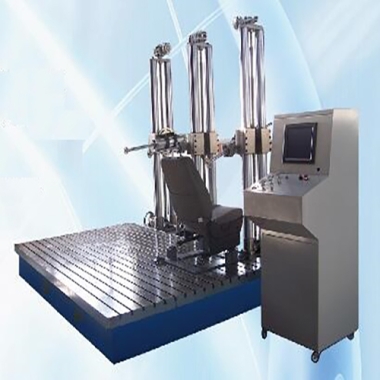

Automotive seat frame durability tester | Applicable standards: GB 11550-2009"Performance requirements and test methods for car seat headrest" : Appendix B of this standard specifies the r... |
 |

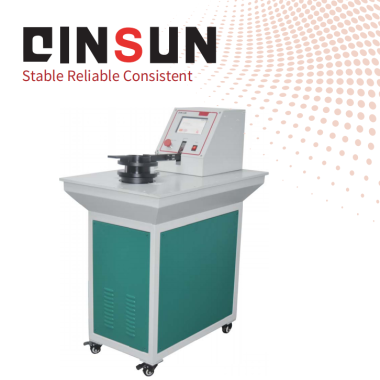

Air Permeability Tester-QINSUN | Air Permeability Tester of textile fabrics complies with ASTM D737. ISO 9237/7231. BS 5636. etc. It is used to test the resistance of the flow of a... |
 |
Taber Abrasion Tester (Double-Head) | Standards DIN Standards: DIN 53754 (plastics), DIN 53109 (paper/board), DIN 52347 (glass/plastics) ASTM Standards: ASTM D1044 (transparent plas... |
 |
Washing Fastness testing machine/Washing Fastness Tester | G228B washing fastness tester is used for washing, dry-clean color fastness testing. Electric touch switch, LCD menu display, without mechanical co... |
 |

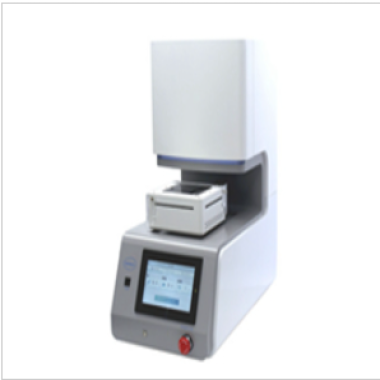

KES - QM Contact Coolness Tester | It is used to measure and evaluate the contact coolness index "q max" (peak heat flux). When the skin comes into contact with fabrics, different am... |
