Cable extrusion tester
Applicable Standards
The tester adheres to international standards for cable mechanical testing, including:
ISO 6722-1(Road vehicles – Electrical cables – Test methods for compression resistance)
IEC Optical fibre cables – Mechanical tests – Compression)
UL 2556(Wire and Cable Test Methods for compression resistance)
SAE J2394(Automotive wire insulation integrity under pressure)
GB/T 2951(China's national standard for cable mechanical tests)
These standards ensure consistent evaluation of cable jacket durability, conductor stability, and resistance to crushing forces.
Working Principle
The tester operates bycontrolled compressive loading:
Sample Mounting: Cables or harnesses are placed between two parallel plates or a cylindrical indenter.
Force Application: A hydraulic or servo-electric motor applies a preset load (e.g., 10 kN) at a controlled speed (e.g., 50 mm/min).
Deformation Measurement: Sensors record cable elongation, jacket cracking, or conductor displacement.
Cycle Execution: The test runs until sample failure (e.g., insulation breach) or a predefined load limit.
Test Principle & Applications
Compression Resistance Testing (ISO 6722-1/IEC :
Cables are compressed to 50% of their diameter or subjected to 20.000 cycles of dynamic loading.
Pass/fail criteria: No conductor fracture or insulation degradation (e.g., <5% thickness loss).
Key Industries:
Automotive: Validating engine bay wiring and battery cables.
Aerospace: Testing in-flight entertainment and control system harnesses.
Telecom: Assessing fiber optic cable durability in underground networks.
The Cable Compression Testing Machine is indispensable for manufacturers developing robust cabling solutions, ensuring compliance with safety standards and minimizing field failures. Its precision and adaptability make it a cornerstone of materials testing in high-stakes industries.
Send product request
Other supplier products
 |

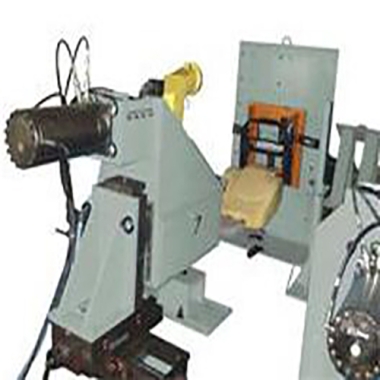

Impact strength tester for car seat launching headrest-QINSUN | Main parameters: Impact speed:The impact speed of the tester is usually between 25 and 30km/h, which is a key parameter to simulate vehicle coll... |
 |

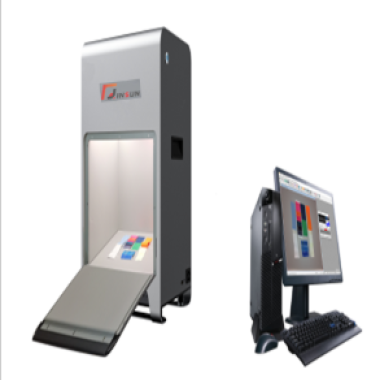

The color fastness automatic grading system | Application Scope The color fastness automatic grading system is used to evaluate the color fastness of textiles, including color staining fastnes... |
 |

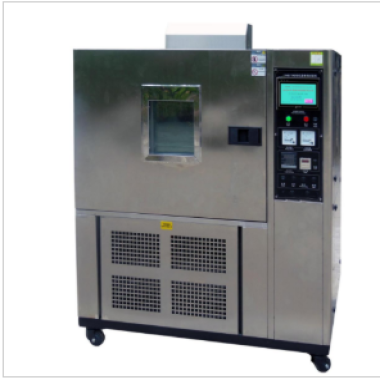

Automotive Wires Low - temperature Winding Tester | The low - temperature winding tester for automotive wires is used to assess and determine the performance of circular wire cables or circular ins... |
 |
STD 500 ultra-high pressure 3D tank cleaning heads | STD 500 ultra-high pressure 3D tank cleaning heads This STD 500 is designed to remove the toughest residues from large tanks in numerous industrie... |
 |

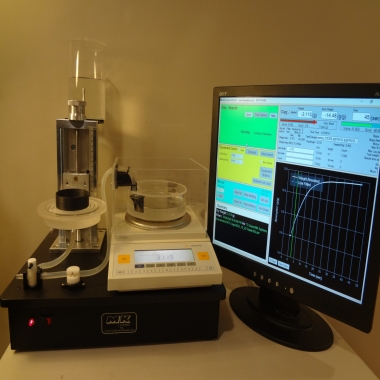

MK GATS absorption tester | Product Introduction: M/K GATS provides easy and reliable measurement of absorbance. This precision absorber uses the M/K system's patented liqu... |
