Hydrostatic Head Testing Equipment | Hydrostatic Head Tester

•

Introduction

The hydrostatic head tester is designed to test the pressure that the material does not come into contact with the exuded water droplets side when the water pressure is continuously raised in a standard atmospheric environment, which is the hydrostatic pressure value of the material. It can quickly and accurately test out the encountered resistance when water penetrates through the material, to assess the material waterproof and moisture permeability.

Standards

AATCC 127 Option 2.

ISO 811.

ISO 1420.

GB/T4744.

FZT01004.

DIN53886.

JIS L1092.

EN20811

Applications

Hydrostatic Head Tester is designed to determine the waterproof property of outdoor wears, umbrella, and waterproof fabric. It is also used to test the resistance of permeability of synthetic blood for materials used in protective clothing. Dynamic, static, custom mode for different test requirements.

One side of the specimen is subjected to a hydrostatic pressure that increasing at a constant rate, then will be ended until three points of leakage appear on its other side. The instrument contains a high precision pressure control system, which could produce the test pressure in an internal water tank. Real-time pressure curve displays on the screen. Easy to use of build-in test mode for different standards.

Feature

1. The pressure using dynamic feedback regulation effectively prevent pressure overshoot.

2. Japan Panasonic servo motor and drive system, 16-bit A/D conversion.

3. Hydrostatic head tester -whole machine with aluminum alloy structure.

4. Sensor protection: automatic overload protection ( automatic switching of multi-sensor range).

Parameters

1. Measuring range: 500pa-200kpa(5-2000cmH2O)

2. Resolution: 1 pa

3. Accuracy: 0.2%FS

4. Pressure speed: 50--900mm/min (500pa-9kpa;5mbar-90mbar)stepless adjustable

5. Accuracy error: ≤1 mm

6. Specimen holder Pneumatic Grip Dimension: 100cm2

7. External dimension: 600×400×780mm(L×W×H)

8. Weight:50 kg

9. Power source: Ac 220V±10% 50HZ 100W or specified

Другие товары поставщика

	Leather edge oil fatigue testing machine - Textile Testing Equipment	Product Introduction: Leather edge oil is made of polyvinyl chloride and other resins, used to coat leather, recycled leather, artificial/a colore...
	Shoelace Abrasion Tester / SATRA TM93 / QB/T2226	Standards SATRA TM93、DIN-4843、QB/T2226、SATRA TM154 Principle Let shoelace cross the eyelet clamped on the fiber board, make the shoelace and eye...
	Schopper Abrasion Tester丨Abrasion Tester (SCHOPPER system)	Standards DIN 53863. Part 2: Abrasion test methods for textile fabrics (rotary abrasion test). GME Standard 60345 & GMW Standard 3283: Indust...
	Fabric sensory quality evaluation tester	Product innovation: The "feel and look", or so-called "sensory perception", of fabrics and knitted fabrics, nonwovens, paper products, leather and...

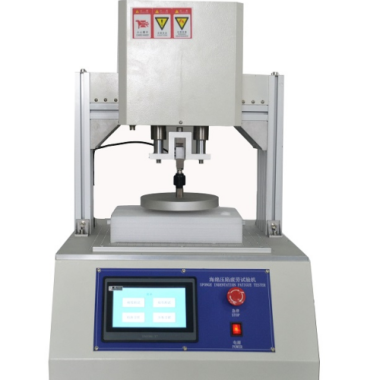

	Sponge foam collapsible hardness tester / Sponge foam collapsible hardness machine	Purpose: This machine is used to measure the indentation hardness of porous elastic materials. The polyurethane foam sample can be tested accordin...
