Automatic Down Filling Tester

Introduction to the Automatic Down Filling Tester

The loftiness index is one of the important indicators of feather and down quality. It is a concentrated manifestation of the internal quality in terms of elasticity and thermal insulation performance.

At the same time, it also indirectly reflects the degree of dispersion of the various components of feathers and down. Loftiness testing is an important part of down testing.

It refers to the elasticity of down (feathers), which is obtained by measuring the volume occupied by a certain amount of sample down (feathers) under a constant weight pressure in a container with a certain caliber. Since the greater the loftiness, the greater the amount of static air contained, and the static air layer is a good thermal insulation layer, there is a good linear relationship between the loftiness of down and the thermal insulation performance of down products.

Technical Parameters of the Automatic Down Filling Tester

• Control System: PLC
• Operating Interface: Color 7-inch touch screen, with Chinese and English switching
• Measuring Cylinder:
• Diameter (large cylinder): 288 mm; (small cylinder): 244 mm
• Cylinder Height: 500 mm
• Cylinder Material: Acrylic
• Sample Filling Amount: CEN 20 g; DIN EN 12130 20 g; USA 30 g; JIS 30 g
• Weight Disc:
• Material: PMMA
• Inner diameter (large cylinder): 284 mm; (small cylinder): 239 mm
• Load Weight: European and American standards (*** & ASTM) 94.5 g; Japanese standard (JIS) 120 g
• Pressure:
• European and American standards (*** & ASTM): 0.14878 g/cm³
• Japanese standard (JIS): 0.188 g/cm³
• Air Volume for Fluffing the Sample: 30 L
• Hanging Rod of the Pressing Disc: Soft
• Descending Speed When the Test Program Encounters Down Feathers: Less than 0.3 m/min
• Overall Dimensions: 760 * 480 * 1480 mm
• Total Weight of the Machine: 69 kg

Standards Applicable to the Automatic Down Filling Tester

IDFB－FP, BSEN12130, GB/T10288, FZ/T80001, GB/T14272, GB/T12705.2, FTMS191A, JISL 1903, etc.

Other supplier products

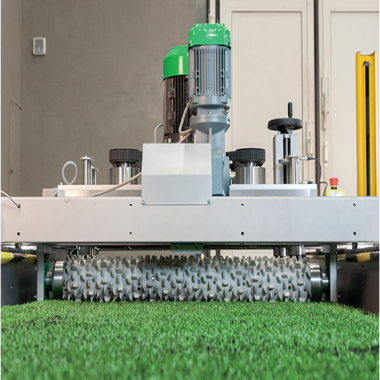

	Artificial turf wear tester/ Grass Abrasion Testing Machine / Artificial Turf Abrasion Tester	Standard FIFA Quality Programme: Exceeds 2015/2016 handbook requirements for artificial turf abrasion resistance testing. EN 15330-1: European ...
