Qinsun SUNTEST XXL+

Qinsun SUNTEST XXL+is a large xenon lamp weathering and photoaging tester that complies with various ISO, ASTM, and ICH industry standards. The exposed area of 3000 cm2 on its horizontal plane is an ideal choice for 3D sample testing.

Qinsun SUNTEST XXL+is used to detect short-term changes in the characteristics of materials and products caused by sunlight, temperature, and moisture. The changes that occur in the product outdoors or indoors, such as fading, yellowing, or strength loss, may take several months or years, while in a Qinsun SUNTEST XXL+ testing instrument, it often only takes a few weeks to simulate.

Standards:

AATCC TM169

Weather Resistance of Textiles: Xenon Lamp Exposure

ASTM C1442

Standard Practice for Conducting Tests on Sealants Using Artificial Weathering Apparatus

ASTM C1501

Standard Test Method for Color Stability of Building Construction Sealants as Determined by Laboratory Accelerated Weathering Procedures

ASTM D4355

Standard Test Method for Deterioration of Geotextiles from Exposure to Ultraviolet Light and Water (Xenon-Arc Type Apparatus)

ASTM D6695

Standard Practice for Xenon-Arc Exposures of Paint and Related Coatings

ASTM G151

Standard Practice for Exposing Nonmetallic Materials in Accelerated Test Devices that Use Laboratory Light Sources

ASTM G155

Standard Practice for Operating Xenon Arc Light Apparatus for Exposure of Non-Metallic Materials

EOTA TR010

Exposure procedure for artificial weathering

EPA/ASTM E896

Standard Test Method for Conducting Aqueous Direct Photolysis Tests

GB/T 1865

Paints and varnishes--Artificial weathering and exposure to artificial radiation—Exposure to filtered xenon- arc radiation

GB/T 8427

Textiles - Tests for color fastness - Color fastness to artificial light: Xenon arc fading lamp test

GB/T 13492

Finishes for automobiles

GB/T 16422

Plastics -- Methods of exposure to laboratory light sources -Part 2: Xenon-arc lamps

IEC 60068-2-5

Environmental testing - Part 2-5: Tests - Test S: Simulated solar radiation at ground level and guidance for solar radiation testing and weathering

ISO 105-B06

Textiles - Tests for colour fastness - Part B06: Colour fastness and ageing to artificial light at high temperatures: Xenon arc fading lamp test

ISO 105-B10

Textiles - Tests for colour fastness - Part B10: Artificial weathering - Exposure to filtered xenon-arc radiation

ISO 4892-1

Plastics - Methods of exposure to laboratory light sources - Part 1: General guidance

ISO 4892-2

Plastics - Methods of exposure to laboratory light sources - Part 2: Xenon-arc sources

ISO 10977

Photography -- Processed photographic colour films and paper prints -- Methods for measuring image stability

ISO 11341

Paints and Varnishes - Artificial Weathering and Exposure to Artificial Radiation - Exposure to Filtered Xenon-Arc Radiation

ISO 11431

Building construction -- Jointing products -- Determination of adhesion/cohesion properties of sealants after exposure to heat, water and artificial light through glass

ISO 11979-5

Ophthalmic implants -- Intraocular lenses -- Part 5: Biocompatibility

ISO 16474-2

Paints and varnishes - Methods of exposure to laboratory light sources - Part 2: Xenon-arc lamps

MIL-STD 810G

Environmental engineering considerations and laboratory tests - Part 2: Laboratory test methods - 505.5: Solar radiation (Sunshine)

VW PV 3930

Non-Metallic Materials - Weathering in Moist, Hot Climate

Advantage:

According to CIE85 advanced solar radiation simulation

Optional filters, used to simulate sunlight passing through window glass, etc.

Excellent test chamber design for testing 3D samples

Easy to use touchscreen user interface with 13 language options

Preset standards for convenient and quick startup settings

Equipped with openings for easy connection of additional external sensors

Black label temperature sensor (BST) compliant with ISO 4892-1 standard

Automatic irradiance control to meet different testing requirements

Characteristic:

Size 90 x 91 x 172 cm

Exposed area 79 x 39 cm (3000 cm2)

3 air-cooled 1700 watt xenon lamp tubes

Easy to use touchscreen user interface with 13 language options

Directly set and control the irradiation intensity (300-400 nanometers or 340 nanometers)

Directly set and control the black label temperature (BST) or blackboard temperature (BPT)

Directly set and control the box temperature (CHT)

Directly control the tolerance range of each test parameter, optimized test control

Display diagnostic information

10 programmable tests, each containing up to 12 stages

Pre set polymer and coating standards for easy and quick access

Horizontal exposure area of 3000 cm2 for 34 standard or multiple 3D samples

According to CIE85 advanced daylight simulation

Lamp box equipped with aluminum reflector, lamp tube connector, and filter slot

External filter with infrared reflective coating

The irradiation control range is 30-65 W/m2 (300-400 nanometers); 0.26-0.62 W/m2 (340 nanometers)

Measure and control CHT: Temperature Max70 ° C (brightness cycle)

Measure and control BST or BPT: Temperature Max100 ° C (brightness cycle)

Design of BST sensor in accordance with ISO 4892-1

Temperature control can be selected through CHT or dual control: simultaneously control CHT and BST (BPT)

Control temperature difference between CHT and BST (BPT)

Ultrasonic humidification system for humidity control

Sample spray system with 60 liter water tank

Tilt the sample testing plane at a 5-degree angle to facilitate the flow of spray water

Approximately 30 x 25 mm inlet port, connected to internal sensors of the test chamber

End the experiment based on exposure to sunlight, exposure time, or total operating time

Advanced automatic start function

Output data through memory card or RS 232 interface

Internal storage chip for storing tool data

Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.

Other supplier products

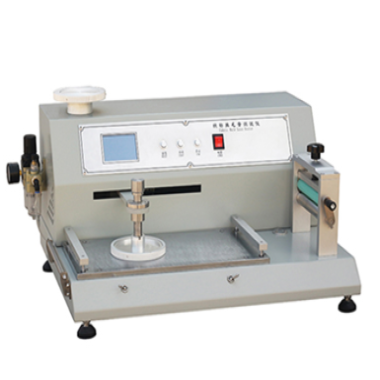

	Fabric Fiber Shedding Degree Tester (Friction)	Instrument Testing Principle Lay the specimen flat and fix it on the holder. Make the wet abrasive attached to the friction head perform reciproca...

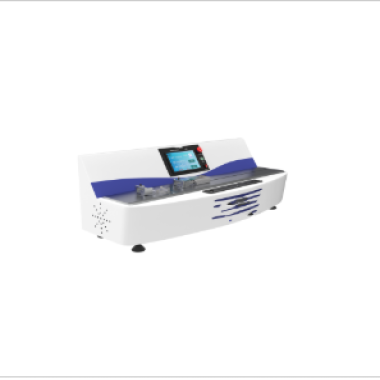

	Hot Tack Tester / Heat Seal Tester	The Hot Tack Tester/Heat Seal Tester is specifically designed for testing the heat-adhesion and heat-sealing properties of packaging materials such...

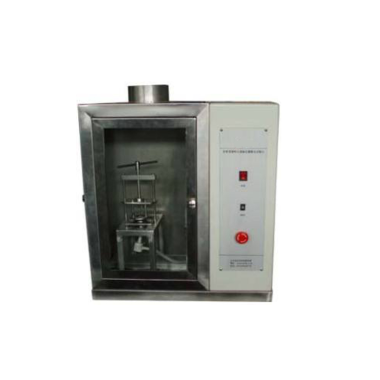

	Protective Clothing Liquid Static Pressure Tester	The Protective Clothing Liquid Static Pressure Tester is designed to evaluate the liquid penetration resistance of breathable protective clothing m...

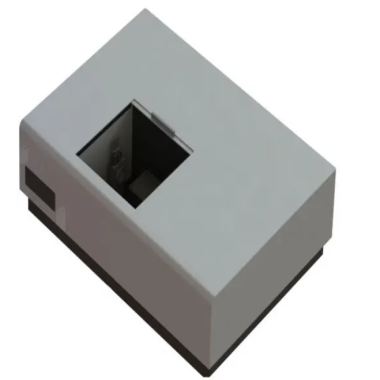

	Contact Lens Spectral Transmittance Analyzer	Product Introduction: Contact lens spectral transmittance measuring instrument is a kind of measuring instrument for contact lens spectral transmi...

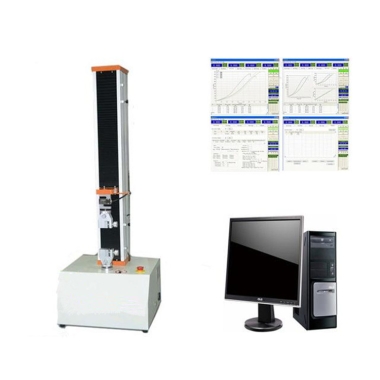

	Catheter Guidewire Friction meter	Test standard YY/T1536-2017.ISO 11070 Test principle The sample is clamped between the two chuck of the fixture, the two chuck do relative movem...
